• Professional Tile Saw Battipav CLASS PLUS Bridge Saw
  • Battipav Class Plus 51" Tile Saw 1300S

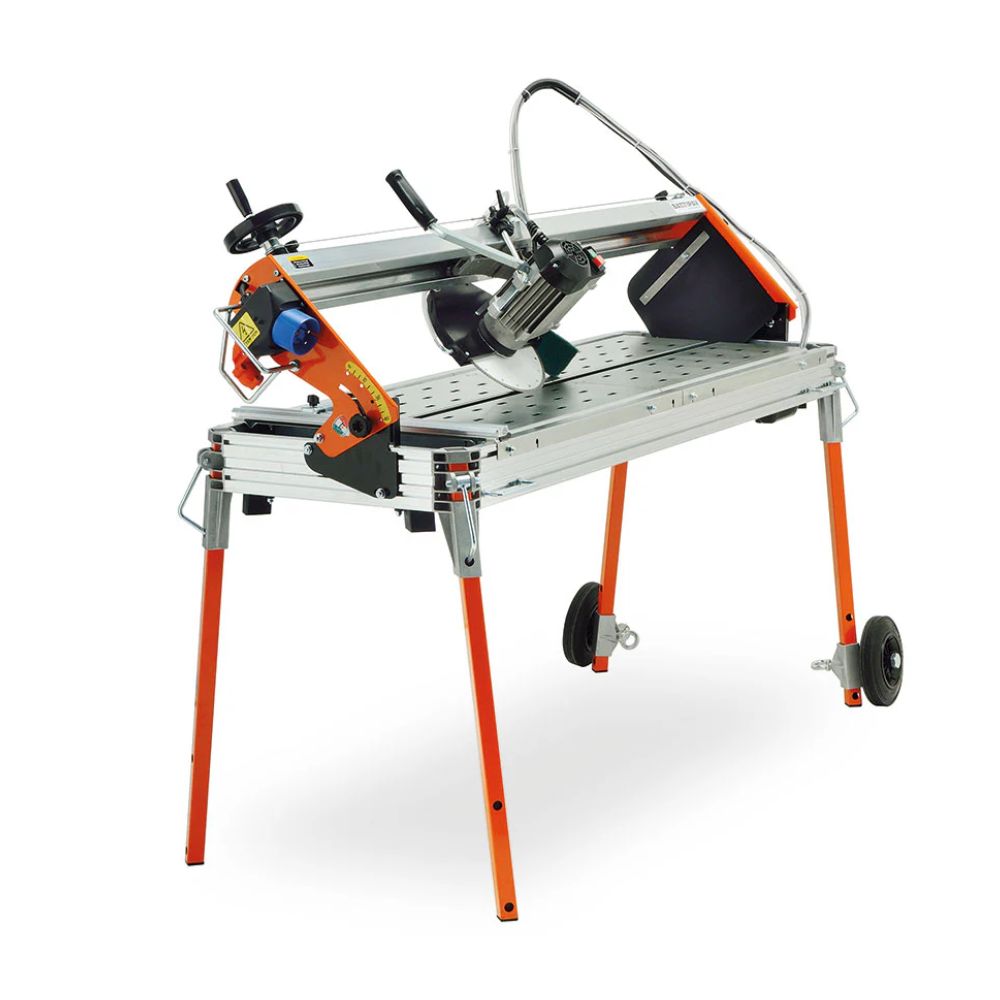

  • Professional Tile Saw Battipav CLASS PLUS Bridge Saw is capable of cutting miters thanks to its adjustable rail system
1 3

Battipav

Battipav Class Plus 51" Tile Saw 1300S

Battipav Class Plus 51" Tile Saw 1300S

$3,195.00USD
$3,195.00USD
Sale Sold out

CLASS PLUS is a radial tile cutter ideal for straight and 45° angle cuts on porcelain
stoneware, tiles and marble.
New design with vanguard technical innovation, strong and precise, it is equipped
with POWERFUL MOTOR sliding cutting head and tilting engine.
It is built to work with diamond disks Ø250 mm special gres.
Laser instrument and kit wheels are supplied standard only for the “S” version.

Equipped with:
– Single-phase motor 230V~50Hz 1,4Kw
– Sliding cutting head and tilting engine
– Thermal protection
– Switch with release coil
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S1/4

Water cooled
Disk Ø250 mm special gres included



BRIDGE

The rail is in extrusion of alluminium at high resistance to the torsional stress. It’s equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision.


CONTROL BOARD

The control board includes:
• Switch with release coil.
• Thermal protection.
• Laser instrument for the maximum cutting precision.


CARRIAGE

The carriage engine group slides with 8 ballbearings on interchangeable stainless steel track.


CUTTING HEAD

The cutting head is horizontally pivoted and can be locked at the intended height. It makes every kind of shape.


STORAGE

Built to reduce at the minimum the encumbrance during the carriage and above all the storage space.

Battipav 1300S Wet Saw Specifications
Power 1.8hp
Voltage 115V
Length of Cut 51 in
Diagonal Length of Cut 32.25 in
Arbor 5/8 in
Blade Capacity 10 in
Depth of Cut 2.5 in
Weight 121 lbs
Dimensions 69 in x 26.5 in x 51 in
