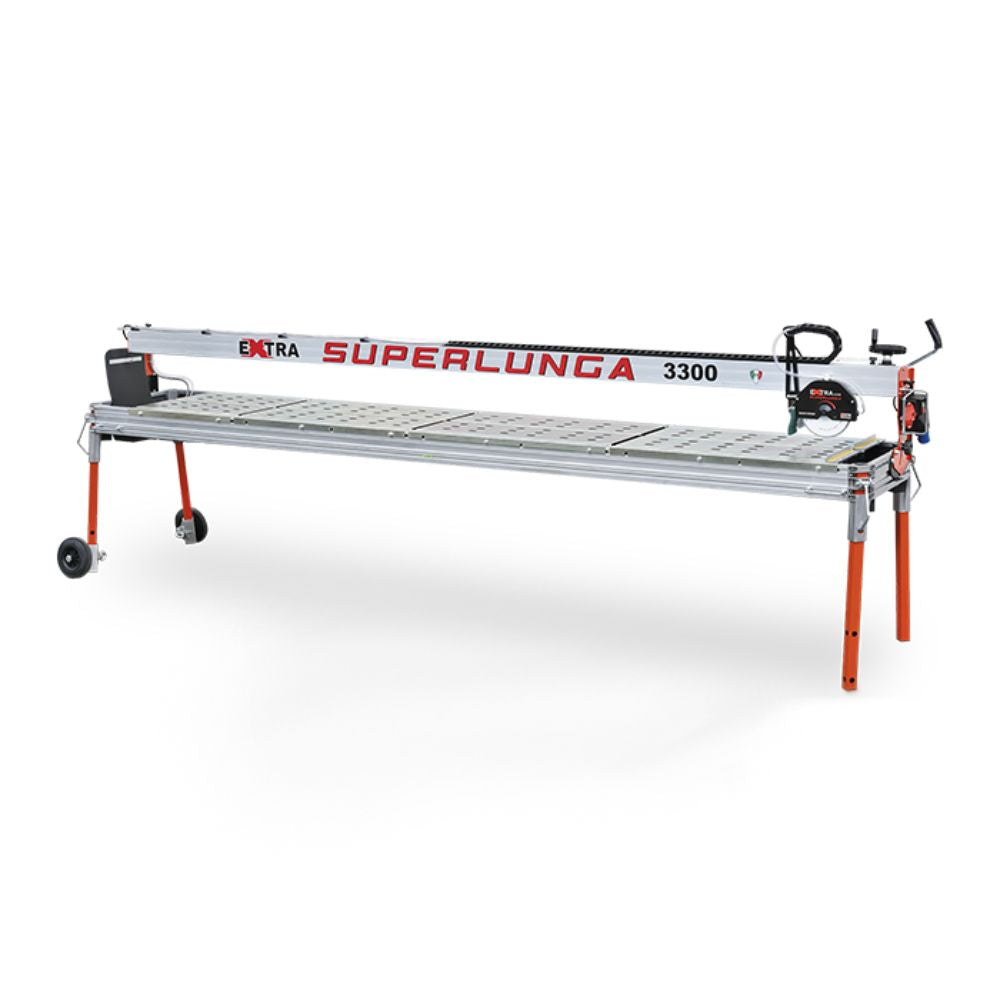

• Battipav Superlunga

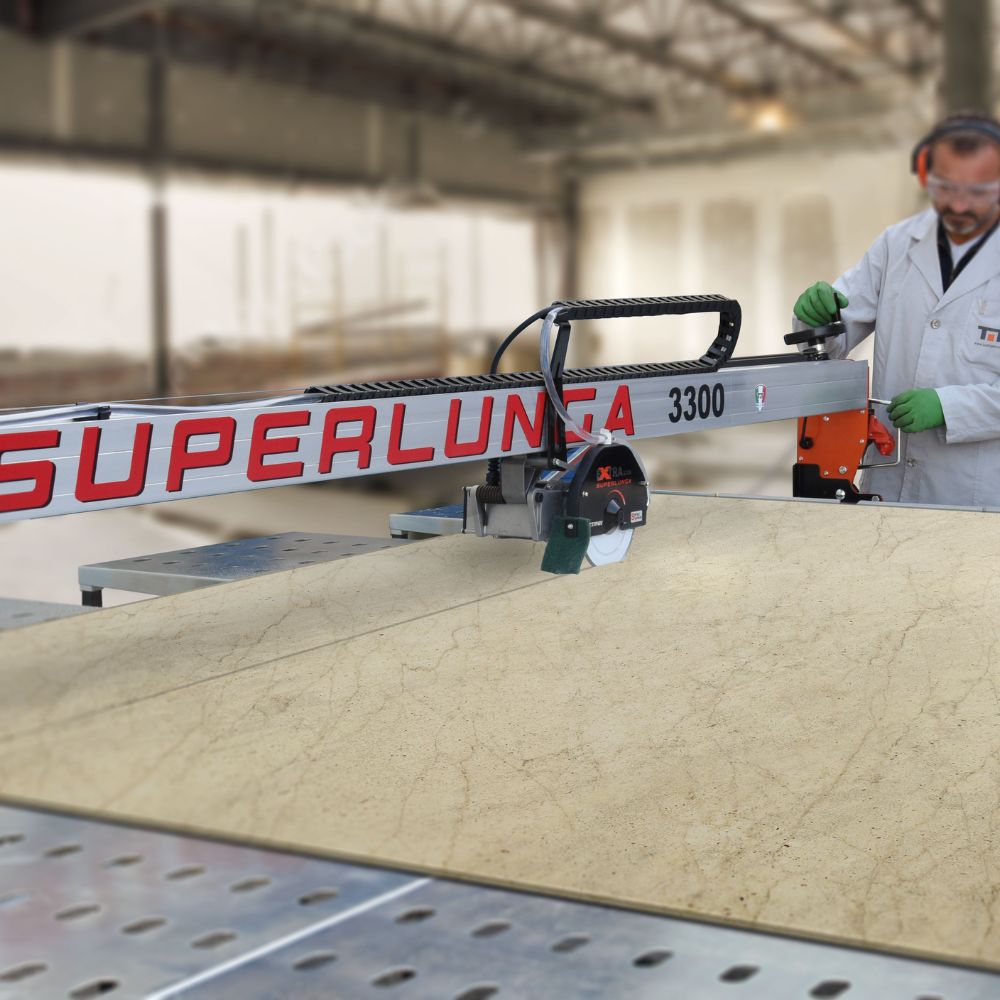

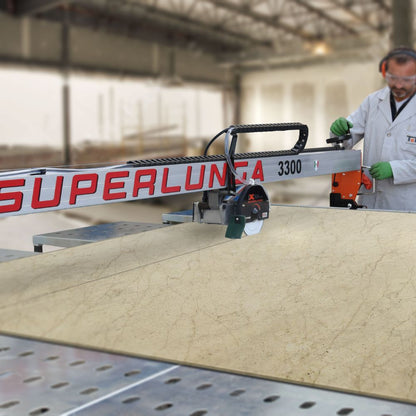

  • Battipav Superlunga being used to cut large format tile

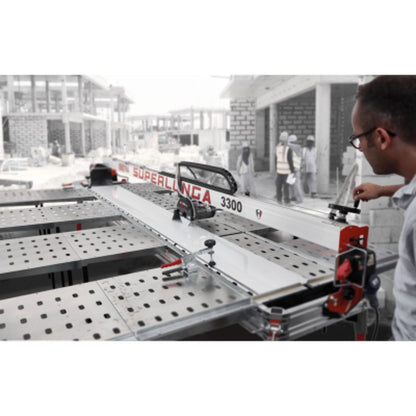

  • Battipav Superlunga tile saw being operated by hand crank to achieve accurate cuts without straining the user.

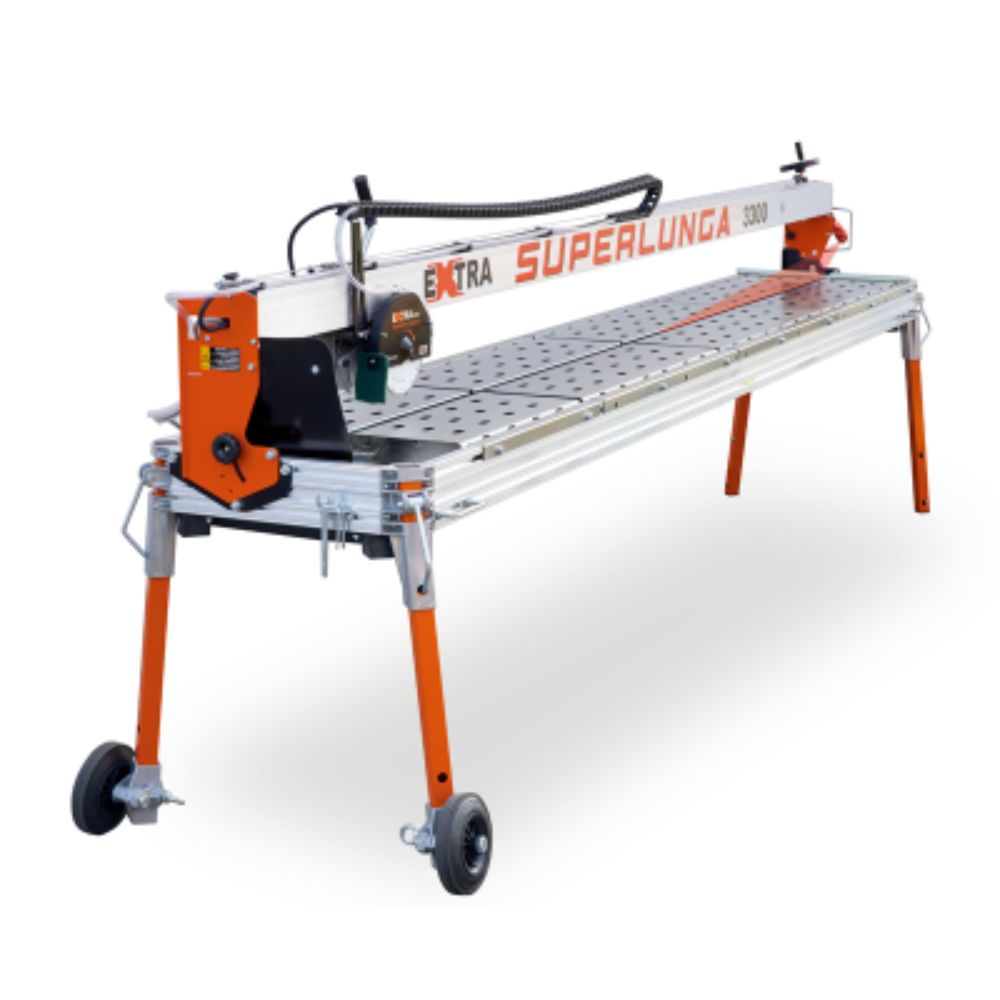

  • The Battipav EXTRA 3300S Superlunga is a radial tile cutter ideal for straight and 45° angle cuts on oversize porcelain tiles.
1 4

Battipav

Battipav EXTRA 3300 S Superlunga

Battipav EXTRA 3300 S Superlunga

$9,750.00USD
$9,750.00USD
Sale Sold out

Battipav EXTRA 3300 S Superlunga Tile Saw

EXTRA 3300 S Superlunga is a new radial tile cutter ideal for straight and 45° angle cuts on oversize porcelain tiles. A new designed bridge profi le with vanguard technical innovation, strong and precise, it is equipped with a POWERFUL MOTOR, sliding and plunging cutting head.
It is built to work with diamond disks Ø200 mm special gres.
Laser instrument and kit wheels are supplied standard.

Equipped with:
– Single-phase 230V~50Hz 1,4Kw
– Sliding cutting head and tilting engine
– Thermal protection
– Switch with release coil
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S1

Water cooled
Disk Ø200 mm special gres included



Trave Extra 3300S Superlunga

BRIDGE

The rail is in extrusion of alluminium at high resistance to the torsional stress. It’s equipped with interchangeable stainless steel bearings-tracks. Absolute cutting precision.


B-LOCK – TILE LOCKING SYSTEM

A smart device to block the material during the cutting operations.


CARRIAGE

The carriage motor group slides with 8 ball-bearings on interchangeable stainless steel track.


Testa basculante Extra 3300S Superlunga

PLUNGING HEAD

The cutting head is plunging and can be locked at the intended height. It makes every kind of shape.


Volantino Extra 3300S Superlunga

CUTTING PROGRESS SYSTEM

The cutting progress system with handwheel adjusts the movement of the cutting head forward or behind.

Battipav 3300S Wet Saw Specifications
Power 1.8hp
Voltage 115V
Length of Cut 129.9 in
Diagonal Length of Cut 92 in
Arbor 5/8 in
Blade Capacity 8 in
Depth of Cut 1.5 in
Weight 396 lbs
Dimensions 131 in x 24.5 in x 51 in
