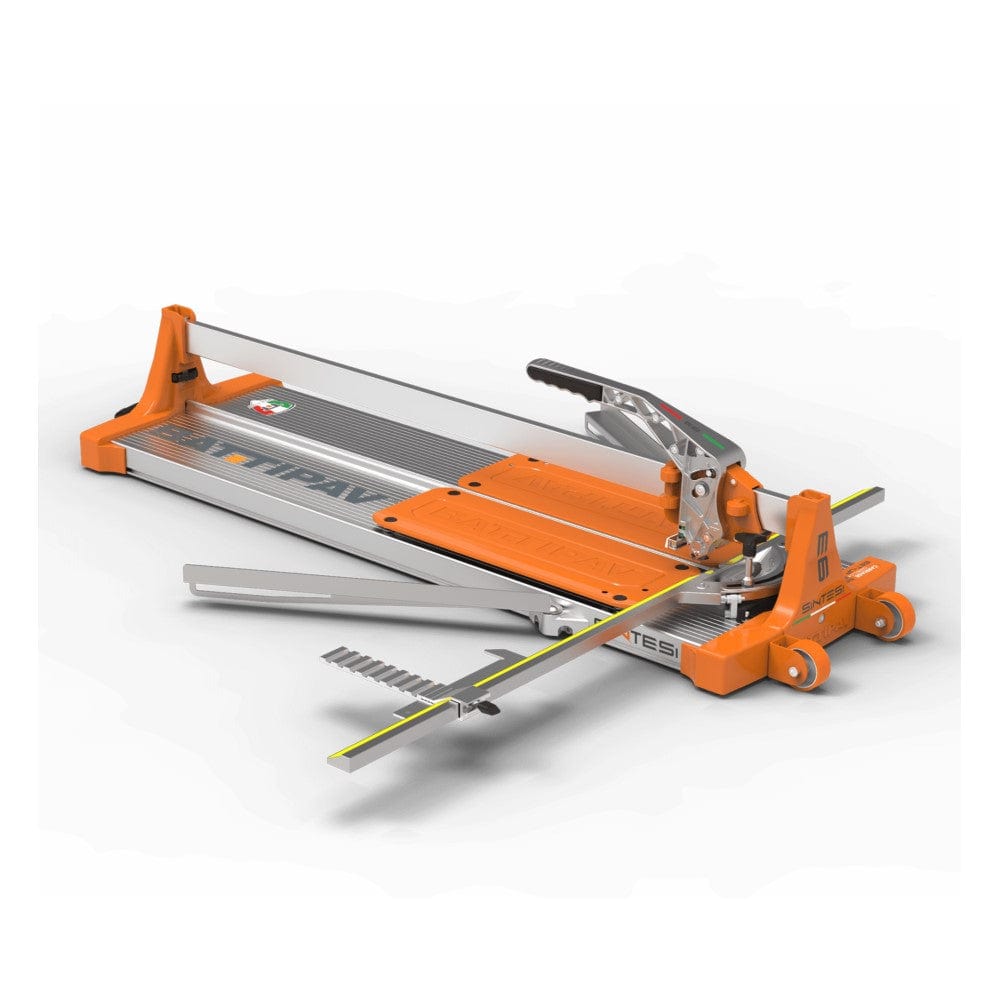

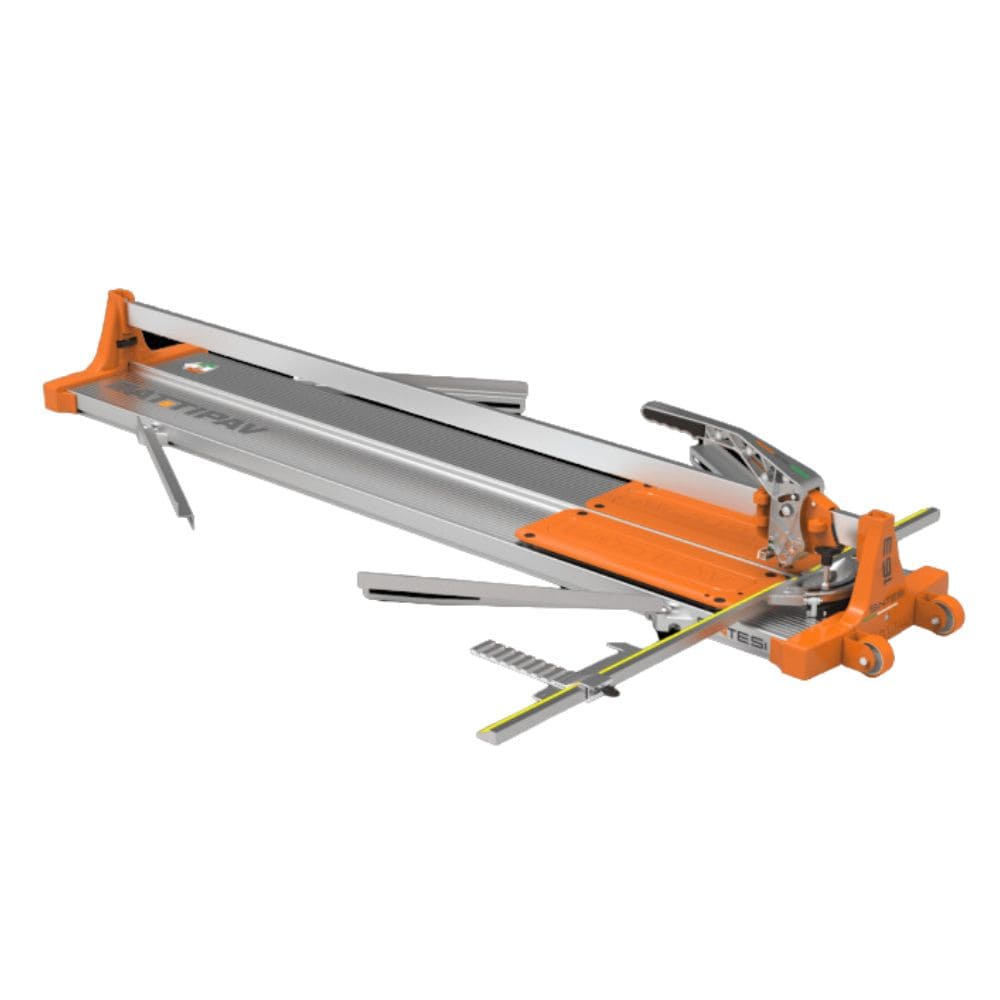

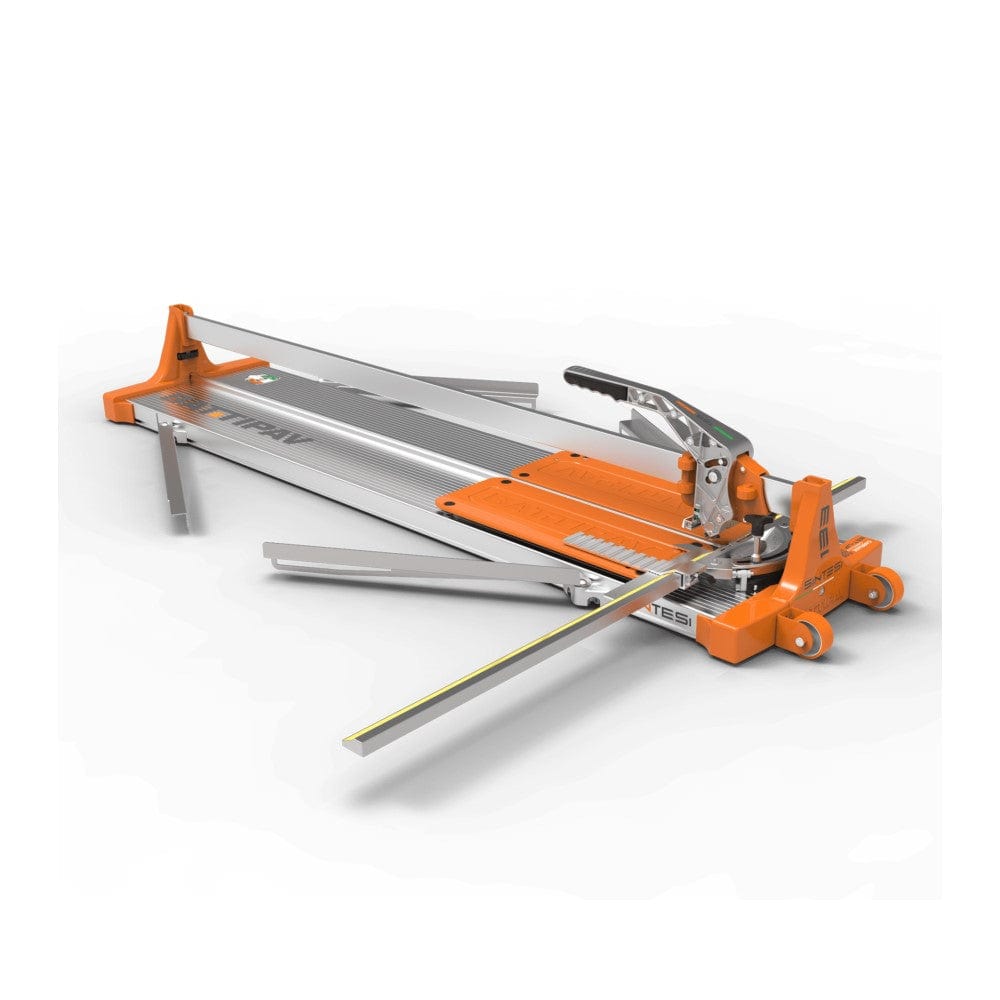

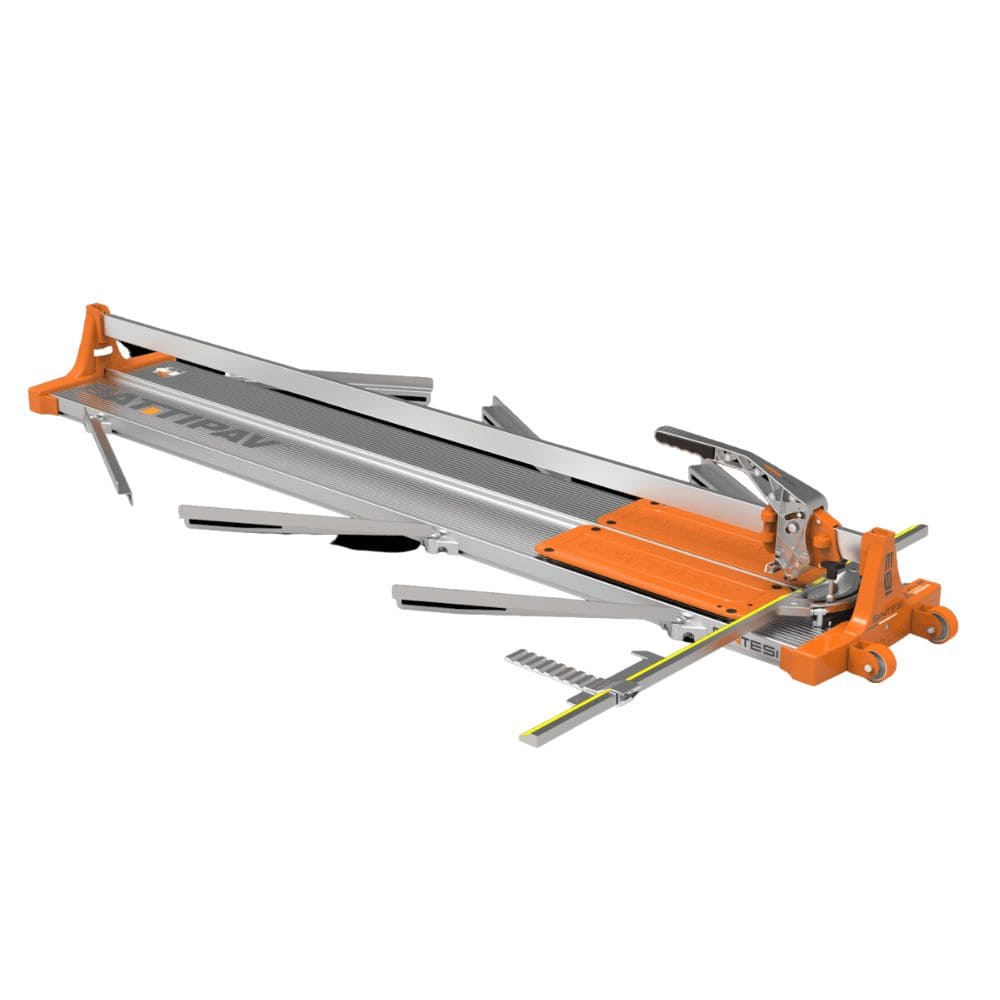

Battipav SINTESI Tile Cutter

Super professional tile cutter “TO PUSH” for diagonal and straight cuts on single-double fired ceramic and porcelain stoneware tiles.
Carriage in aluminium with nine ball-bearings for getting a perfect sliding and top precision.
Easy to transport thanks to standard wheels and ergonomic handle.
The goniometric square can be rotated on both the directions: from -45° to 0 to +45°.
Available in 4 lengths.

Equipaggiata con:

  • Carriage with nine adjustable ball bearings
  • Goniometric square
  • Side extensions for large format tiles
  • Max cutting length: 1830 mm
  • Size of diagonally cut tile: 1290×1290 mm
  • Transport wheels
  • Spare wheel kit

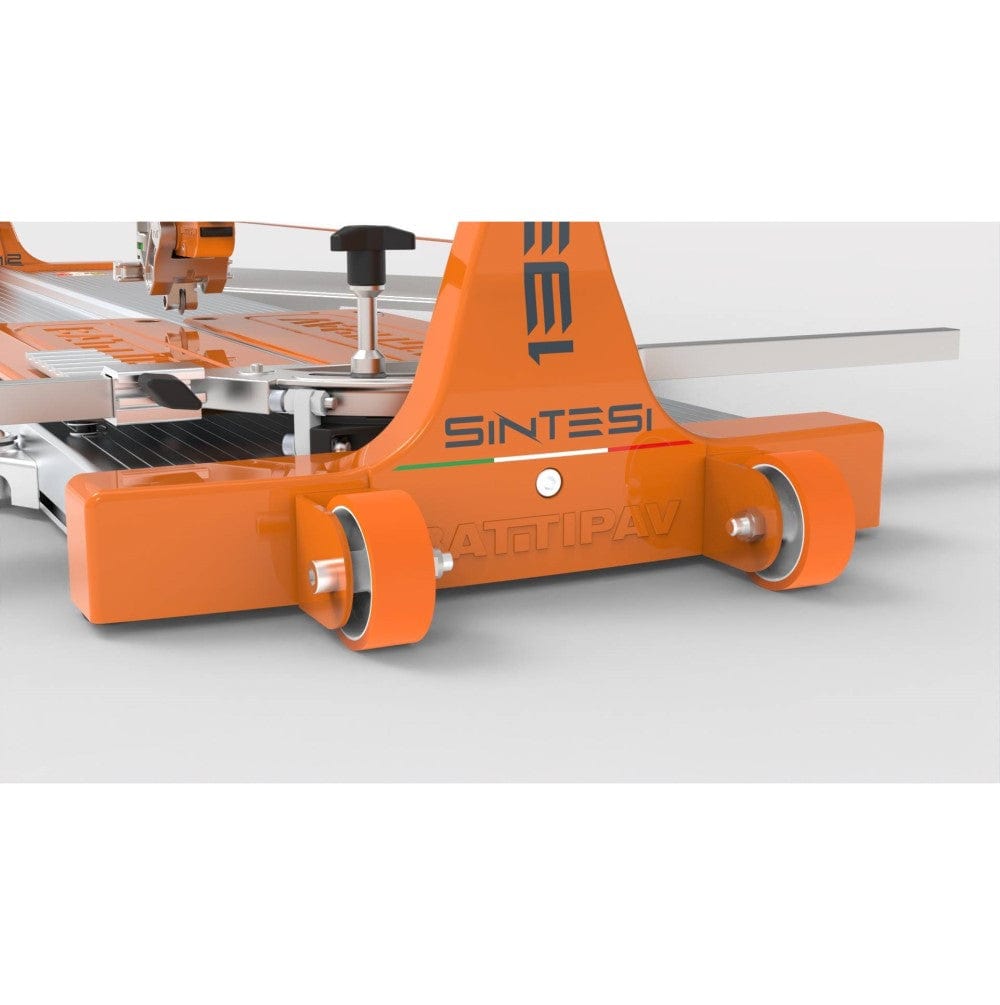

TRANSPORT
Very easy to carriage with all the parts closed, to reduce the encumbrance.




CARRIAGE
The carriage in aluminum is equipped with 9 ball bearings for extremely smooth and precise movement. There are rubber inserts on both sides for hit protection



SIDE EXTENSIONS
A new design of the lateral supports ensures great stability when cutting
large formats. Particularly long in extension make the cut comfortable and safe.



BAR HEIGHT ADJUSTMENT
The bar hight is adjustable for specific tile thickness to have the best possible
performance. Moreover, it is 15 mm thick for superior precision during the long tile cuts



EXTRA SPARE WHEEL
One more extra set spare wheel included. You never run out.



ALUMINIUM MAGNETIC FOOT
The large size breaking foot in aluminum with a white rubber protection to avoid scratches. A magnet placed on the foot allows, by lifting it, to make the whole incision with a single move. Then, by lifting the handle, the foot is immediately ready for separation. Speed and precision: 1 second operation!



STRUCTURE
Strong and large body made in aluminium draw-plate to get rigidity and lightness at the same time.



BREAKING LINE
Made of stainless steel for maximum durability with rubber amortization insert at the breaking point for tile edge protection



SQUARE
Aluminium monobloc with high readability of the measurements, locking device for fast diagonal cut setting and lateral fence for cuts in series.

Battipav Sintesi Tile Cutters Specifications
Model 93 133 163 183
Length of Cut 36.61" 52.36" 64.17" 72.05"
Weight 24 kg 28 kg 33 kg 36 kg
