Battipav Supreme Bridge Saws

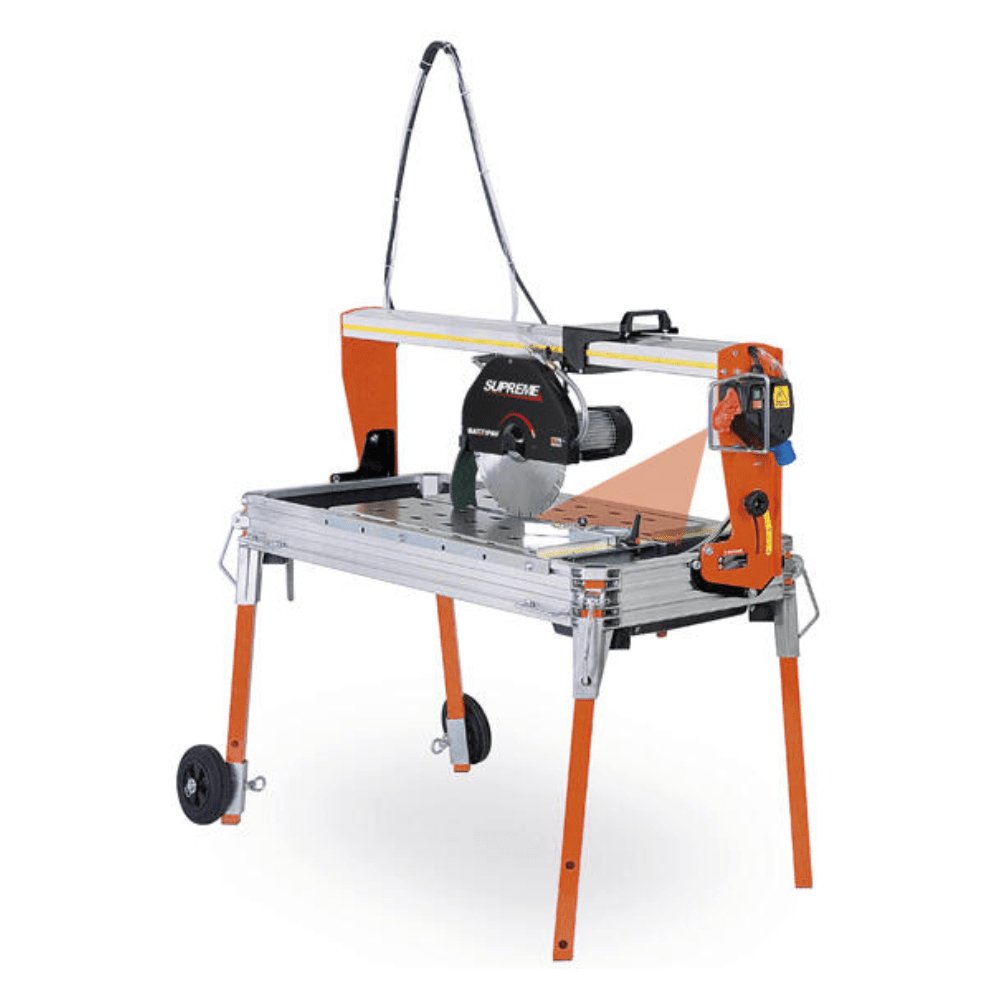

SUPREME is a bridge saw ideal for cutting natural stones, granite and marble slabs.
It makes cuts moving forward manually the engine group.
It is built to work with diamond disk Ø300 mm.
Laser instrument and kit wheels are supplied standard or as optionals.

Equipped with:
– Single phase engine 230V 50Hz 3Hp/2,2Kw with thermal and amperometrical protection
– Switch with release coil
– Overheat protection with manual reset
– Sliding cutting head and tilting engine
– Cutting progress system with hand wheel
– Laser instrument
– Kit wheels
– Adjustable legs
– Adjustable goniometer fence
– Water recycling pump type S3
Disk Ø 300 not included.

STRUCTURE

Alluminium draw-plate to get the maximum of rigidity and lightness at the same time.
BRIDGE
The rail is in extrusion of aluminium at high resistance to the torsional stress.
It’s equipped with interchangeable stainless steel bearings-tracks.
Absolute cutting precision.
SCALE MEASURE
Millimitres graduated scale for a fast execution of the cuts in series.
GONIOMETER FENCE
A professional adjustable goniometer fence is included.
SIDE TABLE
The extension side table, made in galvanized steel, is optional and can be mounted in both the sides of the machine. It allows the cut of big sizes.

CARRIAGE

The carriage engine group slides on the rail by means 8 ball-bearings, of which 4 works always in perpendicular way respect to the rail. So doing the sliding is very fast and precise.

POSITION 45° ANGLE CUTS.

Position 45° angle cuts.
The wiring of the cables is integrated inside the rail to avoid they interfere in the cutting area. Powerfull engine 3Hp / 2,2 KW with thermal and amperometrical protection.

CUTTING DEPTH

The adjustment of the cutting depth occurs by means the locking of the tilting of the engine group. A simple and easy graduated scale measures directly the cutting depth.

CONTROL BOARD

The control board includes:
– switch with release coil
– overheat protection with manual reset in the event of the disk jamming
– red light for signalling the presence to connection net
– green light for signalling machine on function
– laser instrument for the maximum cutting precision (optional in standard version)
– Plug industrial type

WORKING TABLE

The working table, of large dimension (620 mm.), is made in galvanized steel.
The water tank, realized in abs material, crash and consumption proof.
– It’s easy to clean and realized to divide the cutting rubble from the recycling water’s area.
– Water recycling pump type S2 included.
