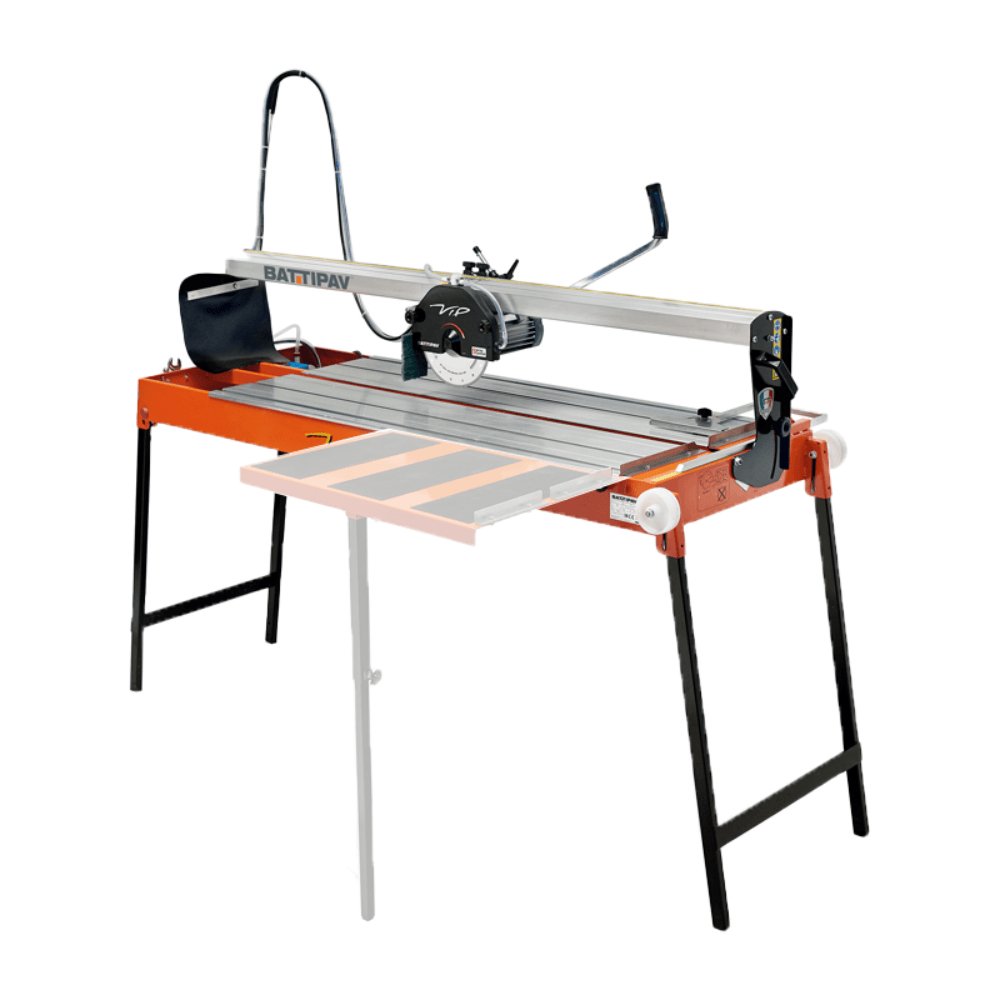

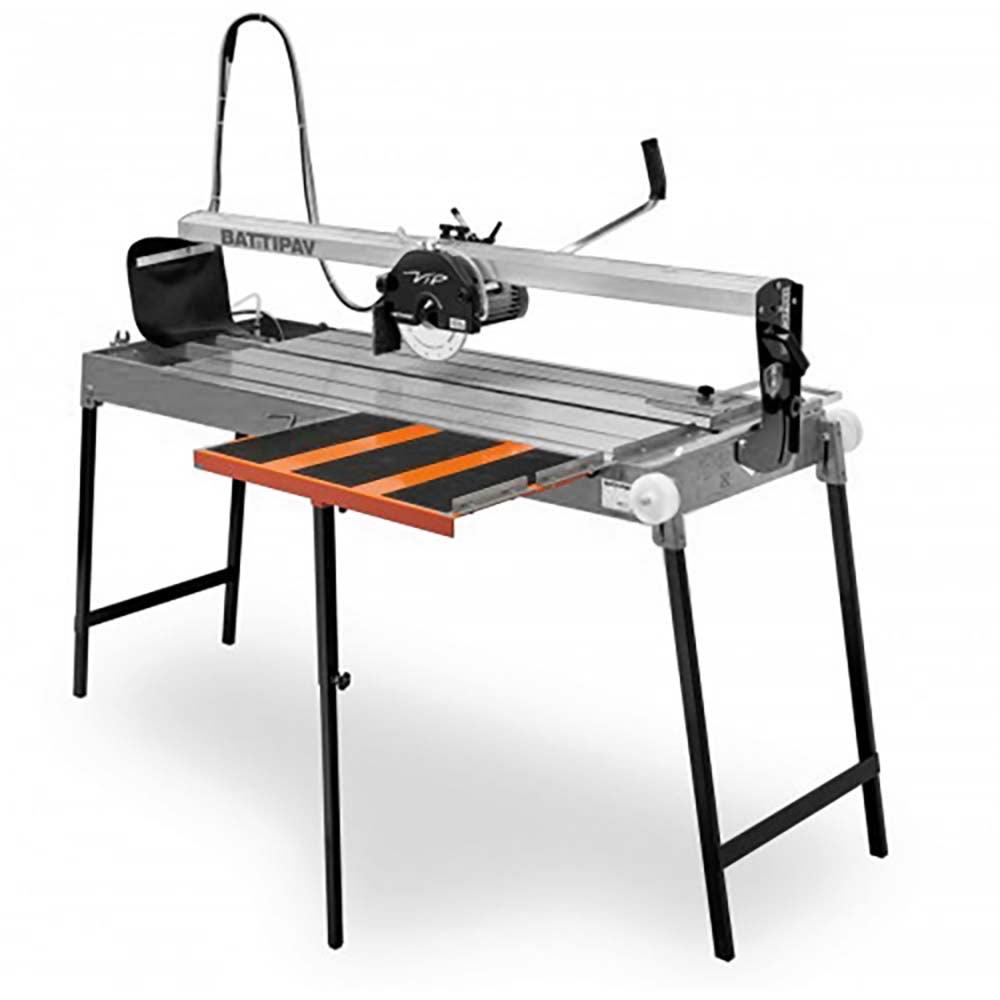

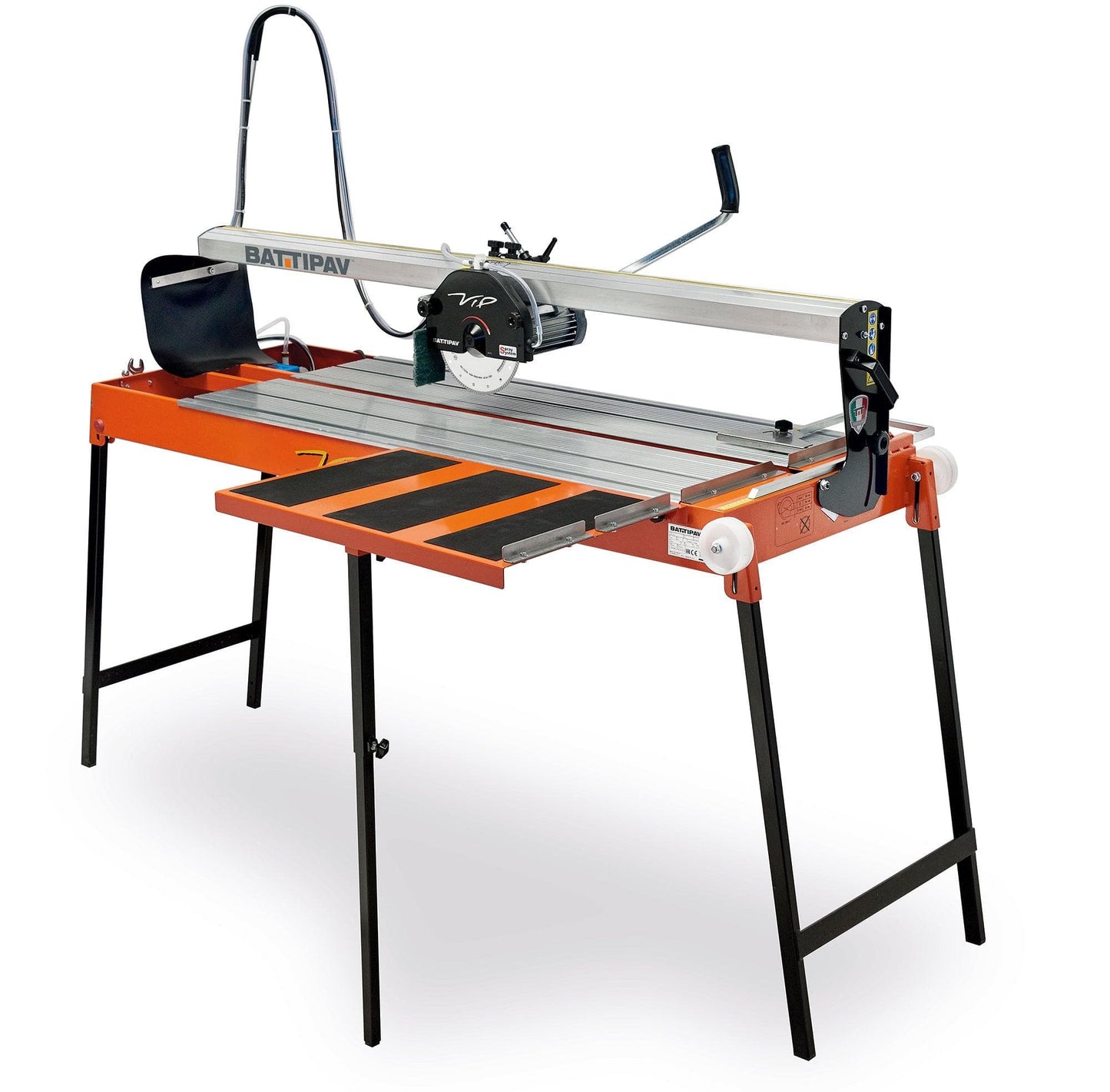

Electrical radial tile saws for straight and 45° angle cuts on single-double fired ceramic, porcelain gres.
Light and compact, it is equipped with sliding head and tilting engine.

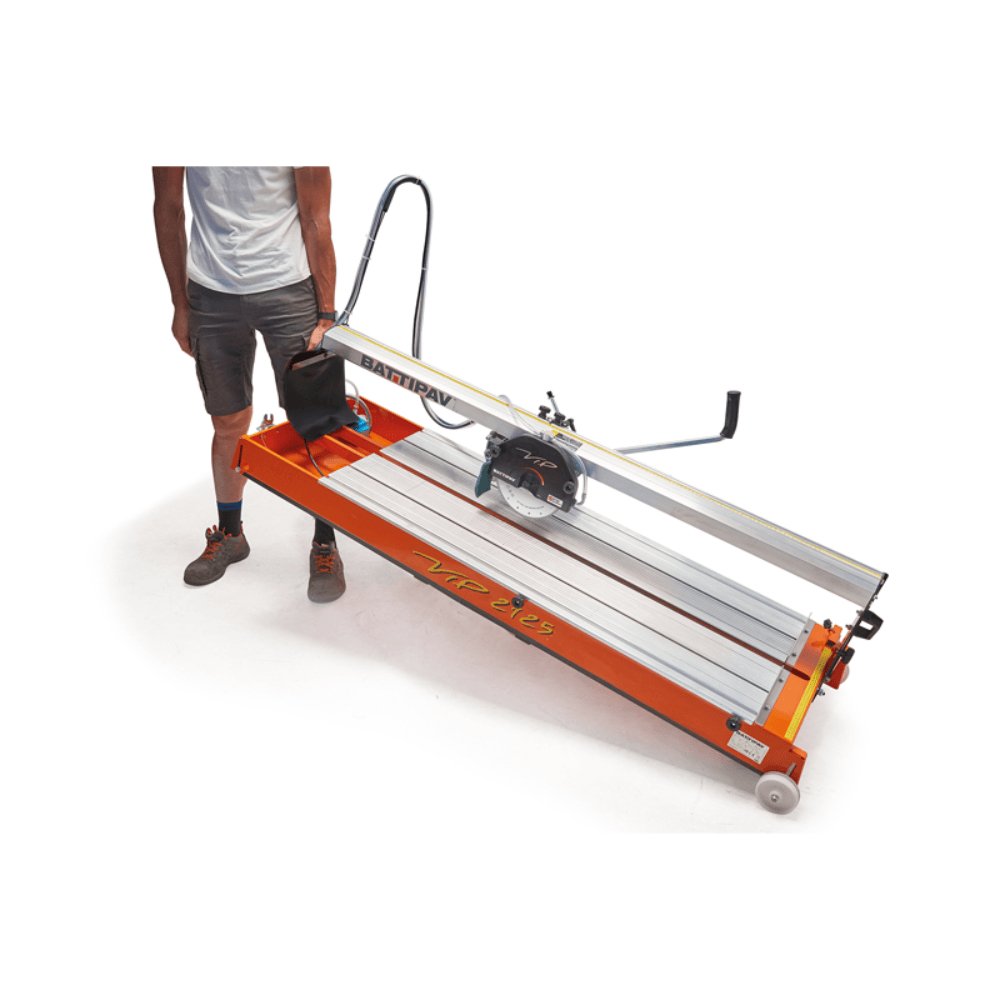

The legs, closing under the working table, are standard.
Equipped with:
– Single-phase motor 230V~50Hz 1400 Watt
– Sliding cutting head and tilting engine
– Switch with release coil
– Diamond disk Ø200 c/c
– Folding Legs
– Pump for water recycling type S1
Water cooled
Tilting parallelly at the working bench, it raises the safety and reduces the water spray allowing a perfect visibility in the cut’s area.
Engine, engineered for this machine only, is perfectly integrated on the rail. It runs on registrable bearings.
It makes every kind of shape due to the progressive adjustment of the cutting height.
Extension side bench
Execution of the cuts in series due to the blocking handle with the immediate reading of the lenght on the rail.
Easy to clean
|
Battipav 2125 Wet Saw Specifications
|
|
| Power | 1.8hp |
| Voltage | 115V |
|
Hertz |
60Hz |
| Length of Cut | 49.21 in |
| Diagonal Length of Cut | 34.65 in |
| Arbor | 5/8 in |
| Blade Capacity | 10 in |
| Depth of Cut 90° | 1.57 in |
| Depth of Cut 45° | 1.38 in |
| Weight | 117.95 lbs |
