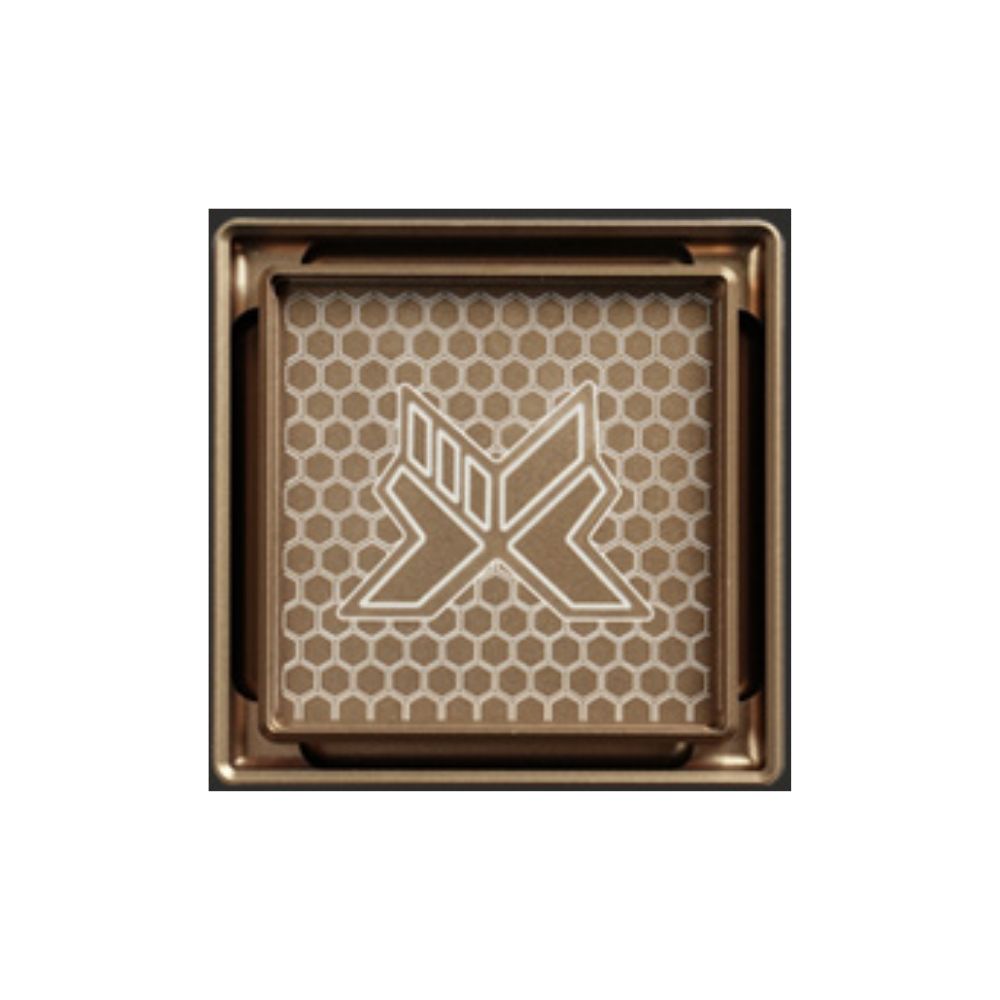

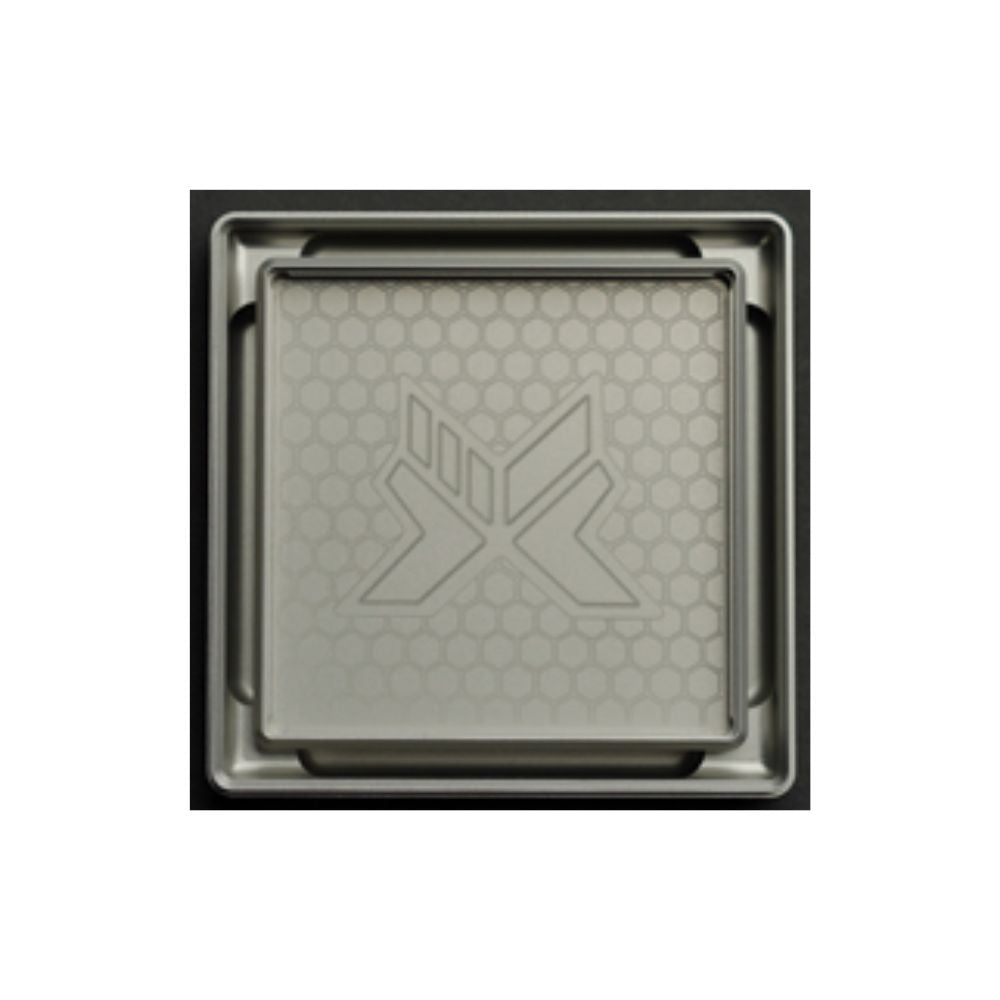

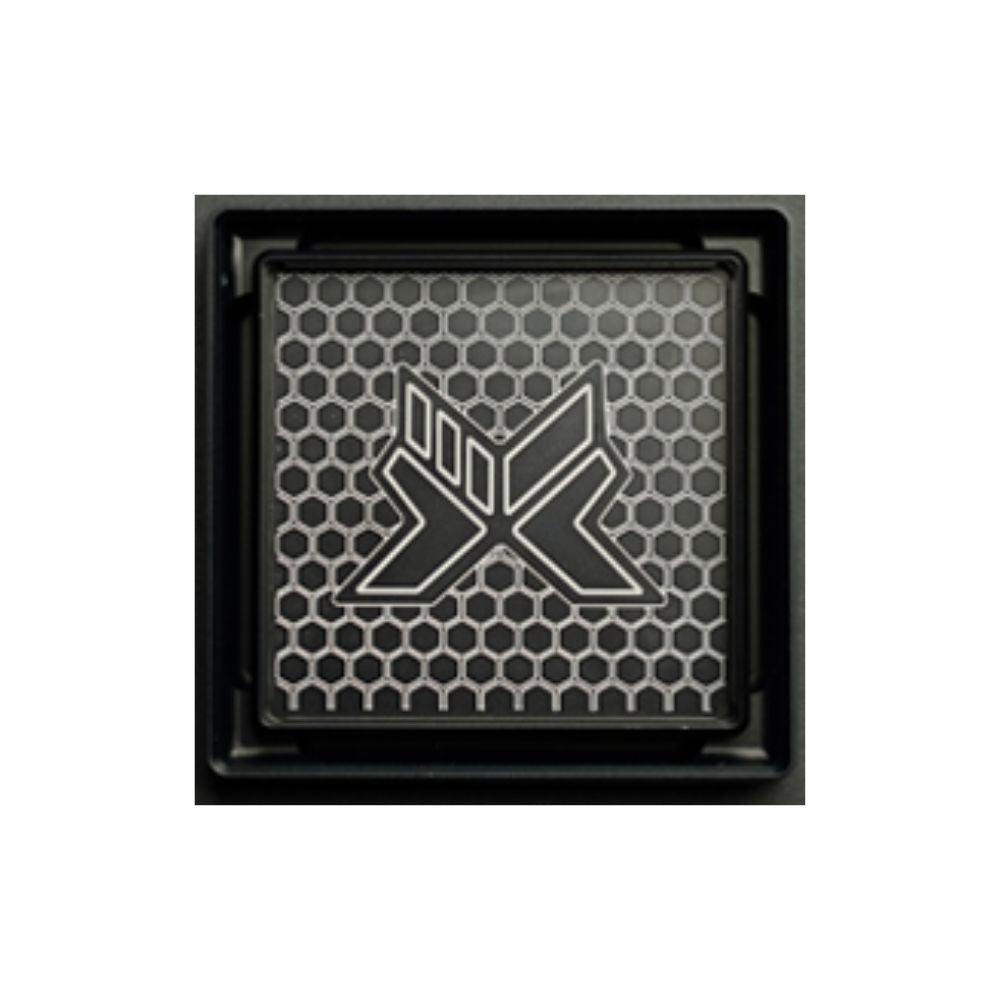

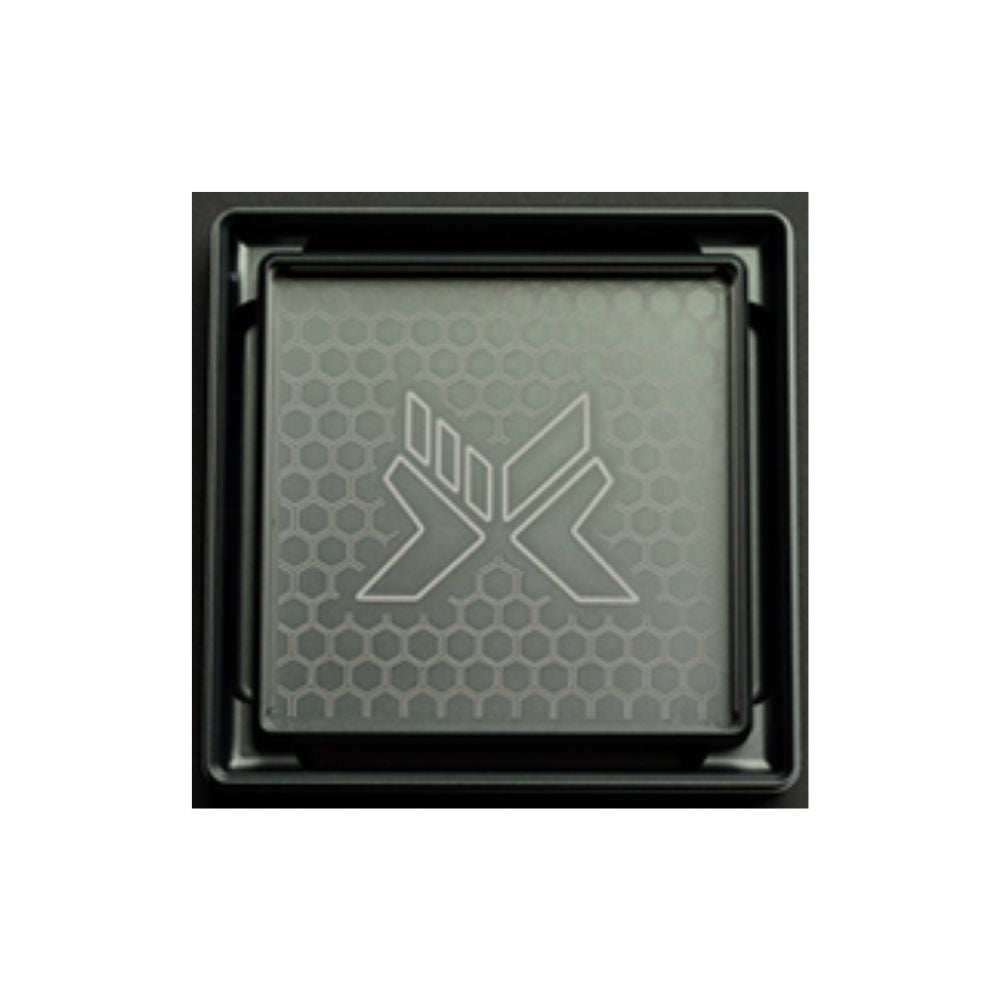

FloFX Tile-In Drain Grates

4" x 4" tile-in drain grates with integrated micro-trim and adjustable fit

The FloFX Tile-In Drain Grate is designed for a cleaner, more seamless drain appearance in tile shower assemblies. This updated tile-in design features more finish options, thinner trim, improved flow characteristics, and solid CNC-machined metal construction for a refined finished look.

Features & Benefits

• Tile-in design: Creates a more integrated finished appearance by blending the grate with the surrounding tile.
• Improved design: Updated with more finishes, thinner trim, and better flow characteristics.
• 4" x 4" outer trim: Standard square format for compatible drain applications.
• 3" x 3" inner tray: Sized to hold cut tile for a clean tile-in presentation.
• Horizontal and vertical adjustment: Supports easier alignment during installation.
• Integrated micro-trim: Provides a clean edge detail around the tiled insert.
• Solid metal construction: CNC-machined for durability and consistent fit.
• Thin tile version available: Works with tile as thin as 3/16" without additional planning.
• Thick tile version available: Designed for thicker tile applications with fit adjustments as needed.
• Complete grate assembly included: Includes solid CNC-milled grate carrier and tile-in grate.

Applications

• Residential and commercial tile shower installations
• Projects requiring a more seamless tile-in drain appearance
• Installations where finish coordination and low-visibility drain detailing matter

Compatibility

• Works with: FloFX Universal Drain Body only
• Not included: Bond flange sold separately

Technical Details

• Product: FloFX Tile-In Drain Grates
• Outer trim size: 4" x 4"
• Inner tray size: 3" x 3"
• Adjustment: Horizontal and vertical adjustment
• Construction: Solid metal, CNC-machined
• Trim detail: Integrated micro-trim
• Thin version: For tile 3/16" thick with no additional planning
• Thin version note: Can be used with tile thicker than 5/16" by back grinding tile
• Thick version note: Tile thicker than 3/8" will need to be thinned by back grinding to fit the 3" x 3" tile grate
• Included: Solid CNC-milled grate carrier and tile-in grate

Use Notes

• For a more seamless finished look, match the grate color to the tile rather than the plumbing trim finish.
• Verify tile thickness before selecting the thin or thick tile version.
• Back grinding may be required for thicker tile installations.
• Bond flange is not included and must be purchased separately when required for the drain assembly.
