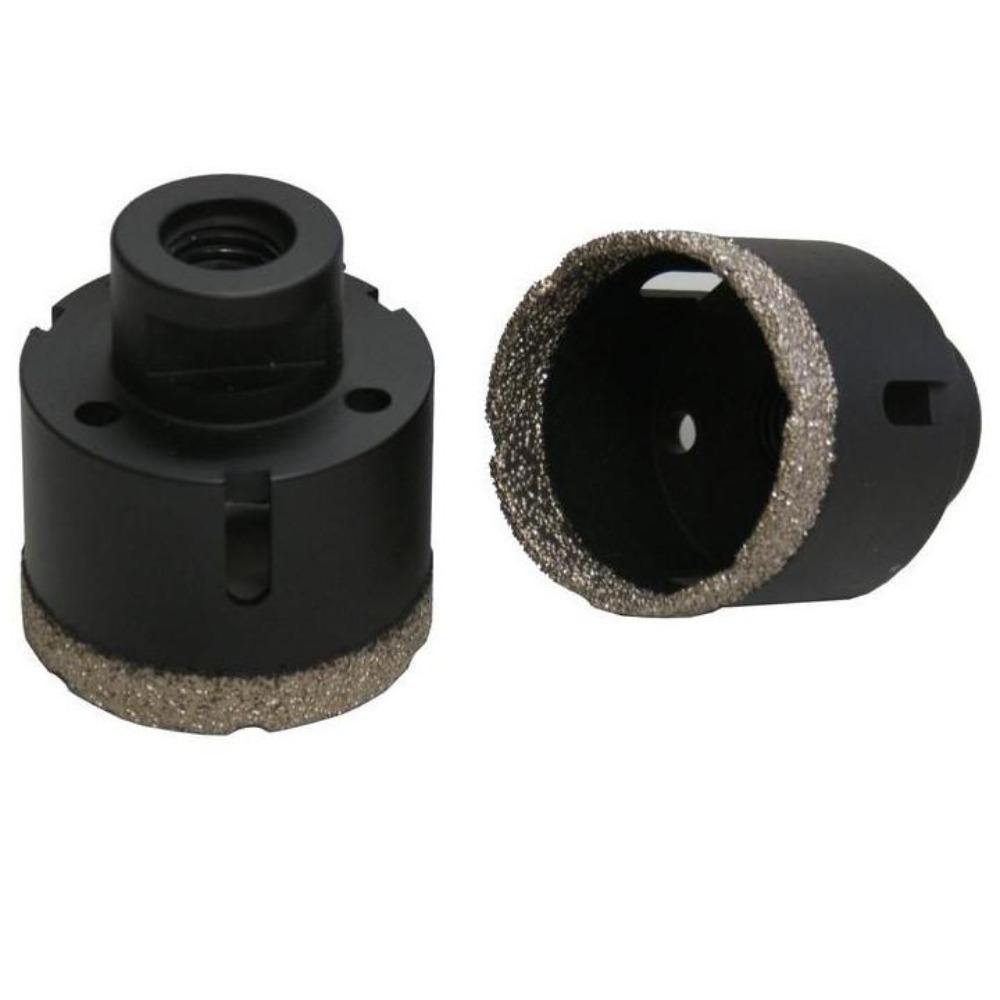

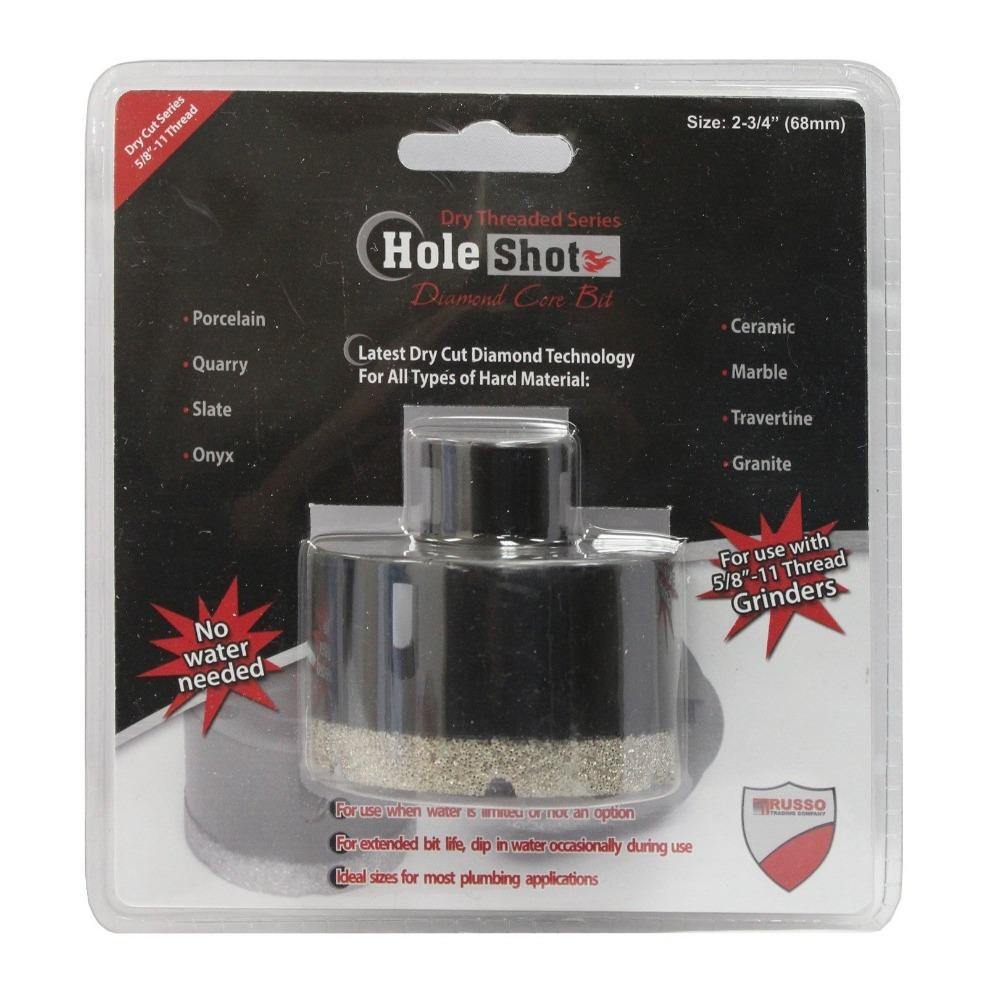

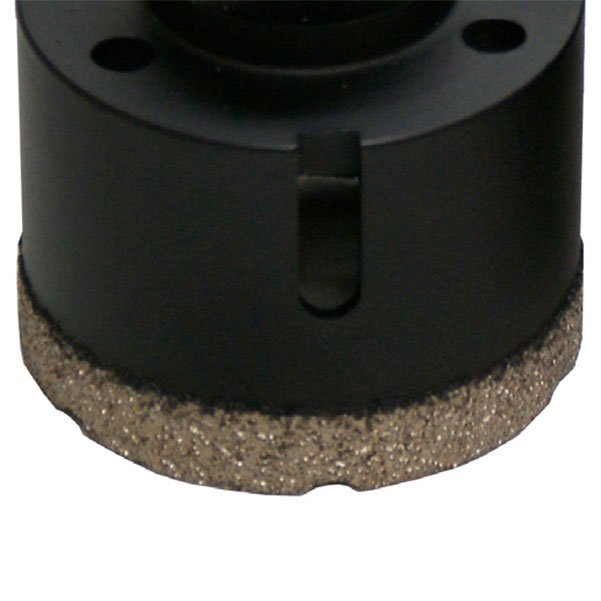

Hole Shot Dry Bits

For use with 5/8"–11 thread grinders.

The RTC Hole Shot is a porcelain core bit engineered for minimal to no water use on grinders with a 5/8"–11 threaded spindle. Each bit is designed to drill clean, accurate holes in hard materials while running dry, making it ideal for on-site work where water control is difficult.

Vacuum-brazed diamond segments provide fast cutting and long life, delivering up to 40 holes per bit in typical porcelain applications while still performing on granite, marble, and other dense surfaces.

Key Features

• Dry-use design for minimal to no water on the jobsite.
• Compatible with grinders using a 5/8"–11 threaded spindle.
• Vacuum-brazed diamond construction for clean, fast cutting.
• Rated for up to 40 holes per bit in standard porcelain conditions.
• Effective on porcelain, granite, marble, and other hard materials.
• Available in dedicated 7-piece and 6-piece kits to cover common hole sizes.

Kit Options

7 Piece Kit

• (2 pcs.) 1/4" (6 mm)
• (2 pcs.) 5/16" (8 mm)
• (1 pc.) 3/8" (10 mm)
• (1 pc.) 1/2" (12 mm)
• (1 pc.) 9/16" (14 mm)

6 Piece Kit

• (1 pc.) 3/4" (20 mm)
• (1 pc.) 1-3/8" (35 mm)
• (1 pc.) 1-1/2" (40 mm)
• (1 pc.) 2" (50 mm)
• (1 pc.) 2-1/4" (55 mm)
• (1 pc.) 2-3/4" (68 mm)
