Illuminiche INSWITCH II™ Driver + Dimmer & Low Voltage Wire – 24 V LED System

Save wall-box space and simplify Illuminiche installations with the INSWITCH II™ driver/dimmer paired with Illuminiche Low Voltage Wire. Together they provide code-compliant 24 V power delivery and clean, permanent in-wall runs between the switch and Illuminiche LED niches or light channels. Choose from 60 W or 96 W driver models and 25 ft wire options with or without a plug-and-play harness to match your project.

Illuminiche Low Voltage Wire – 25 ft (With or Without Harness)

The Illuminiche Low Voltage Wire provides safe, code-compliant connections between your INSWITCH II™ driver/dimmer and Illuminiche LED light channels. Available in two options — a basic 25 ft wire reel or a 25 ft plug-and-play harness reel — installers can choose the best solution for their project needs.

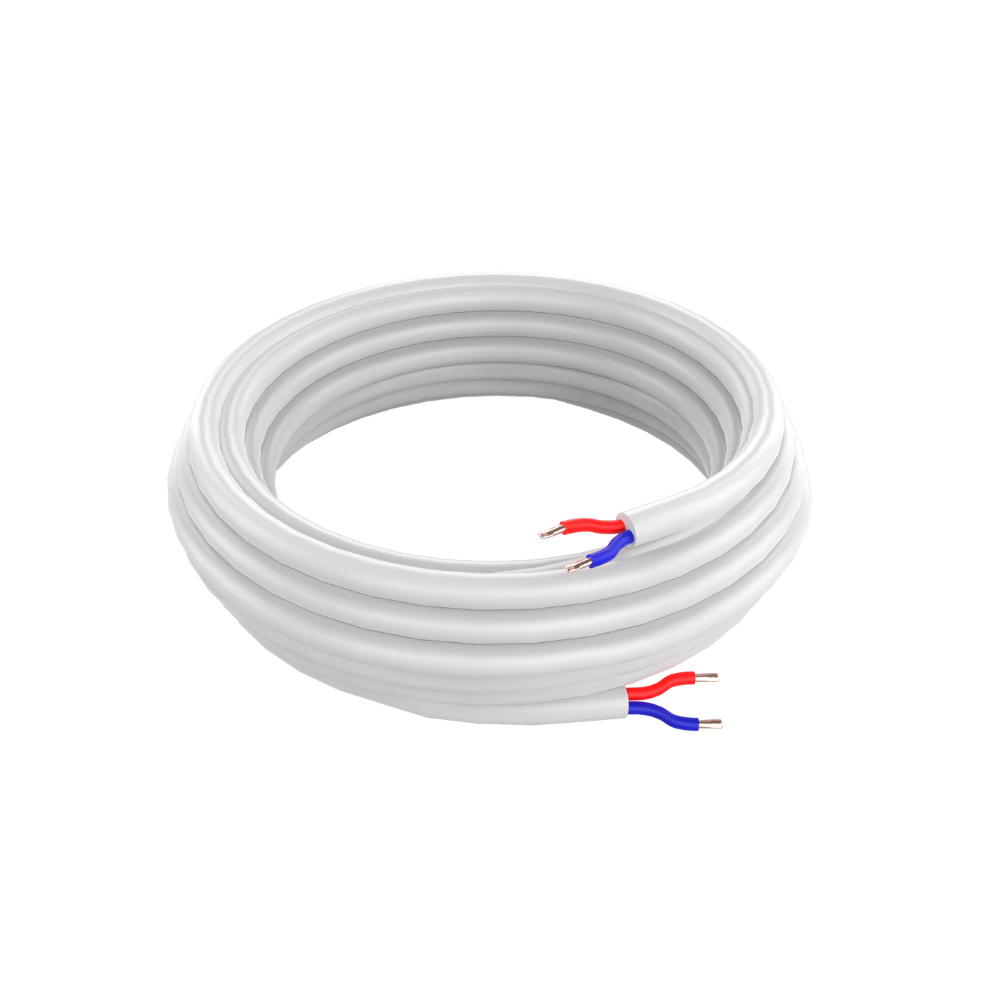

Option 1: Illuminiche Wire – 25 ft (No Harness)

• Type: 20/2 double-insulated low voltage wire.
• Length: 25 feet.
• Purpose: Provides seamless connection from niches or light channels to the switch.
• Application: Safe, efficient, and reliable wiring for Illuminiche installations.
• Benefit: Code-compliant wire designed for permanent in-wall runs.

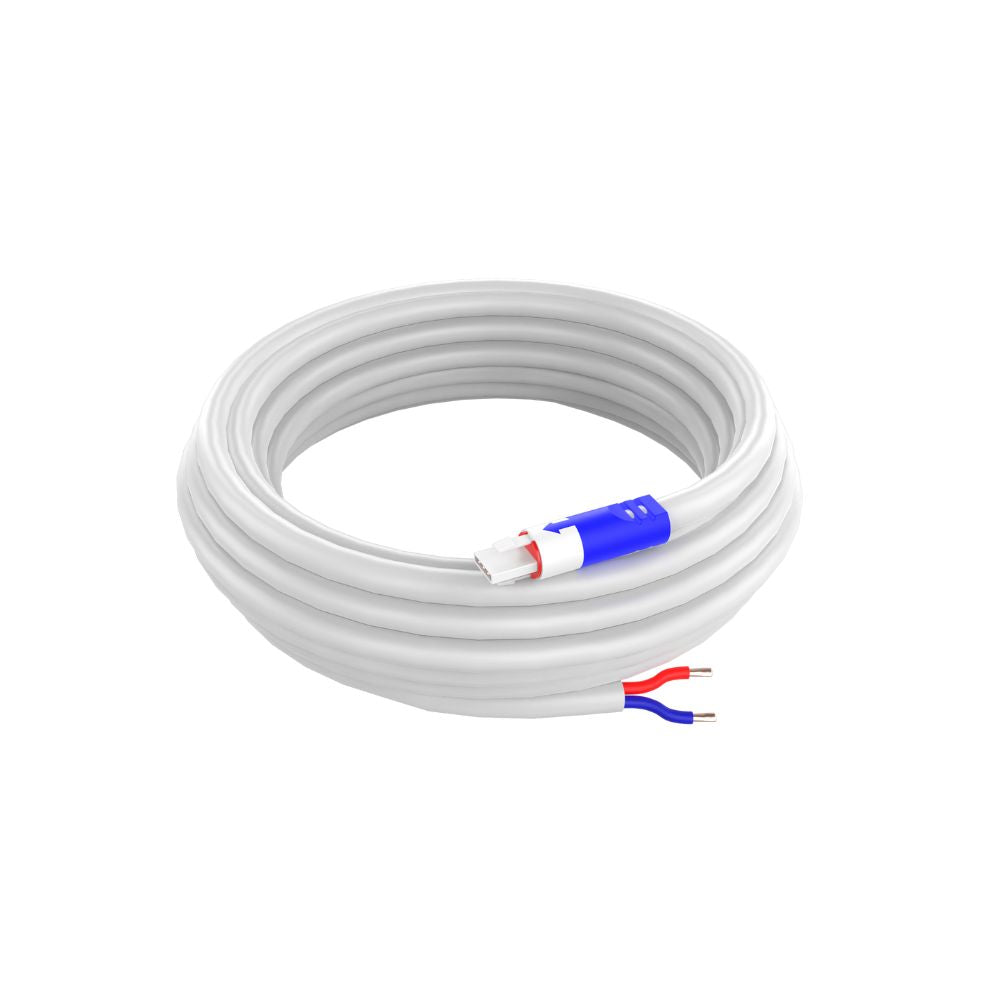

Option 2: Illuminiche Wire – 25 ft (With Harness)

• Model: INWIRELV-H.
• Type: 22/2 AWG color-coded wire (UL Listed).
• Length: 25 feet.
• Compatibility: Designed exclusively for Illuminiche systems; matches INSWITCH II™ low-voltage outputs.

Connections:

• One end includes a pre-attached male harness for direct plug-and-play connection.
• Compatible with all wet location channels (niches pre-wired with 12" female harness).
• Not compatible with dry location channels (requires different connection type).
• Construction: Double-insulated, red (+) and blue (–) conductors inside a durable white jacket.
• Benefits: Eliminates in-wall junctions, ensures fast, reliable, tool-free connections, and simplifies installation.

Low Voltage Wire – Features & Benefits

• Code-Compliant Safety – Double-insulated low voltage wire designed for Illuminiche LED lighting.
• Flexible Options – Choose standard wire for permanent installs or plug-and-play harness for fast tool-free setups.
• Installer Friendly – 25 ft length reduces junction boxes and splices, simplifying layout.
• Durable Construction – Engineered for long-term reliability in residential and commercial applications.
• System Compatible – Designed specifically for Illuminiche niches and light channels.

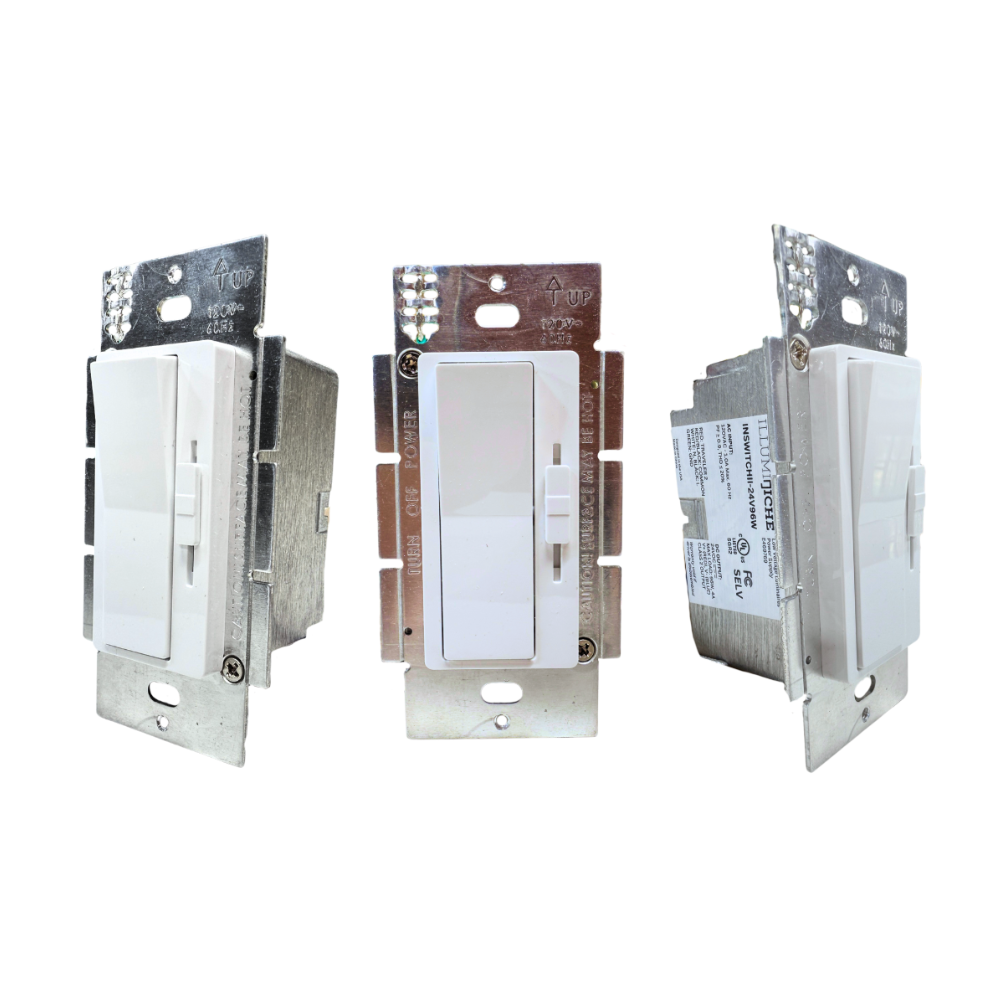

INSWITCH II™ Driver + Dimmer Switch — 24 V / 60 W or 96 W (White)

Save wall-box space and installation time with the INSWITCH II™, the patented 24-volt LED driver and dimmer combined into a single device. Drop it into a standard single-gang box, land your 120 VAC feed, and walk away with low-voltage power and 1 %-to-100 % flicker-free lighting control in under 10 minutes.

Available in 60 W and 96 W models, INSWITCH II™ is ideal for niche lighting, coves, shelving, and even demanding applications like steam rooms or long cable runs.

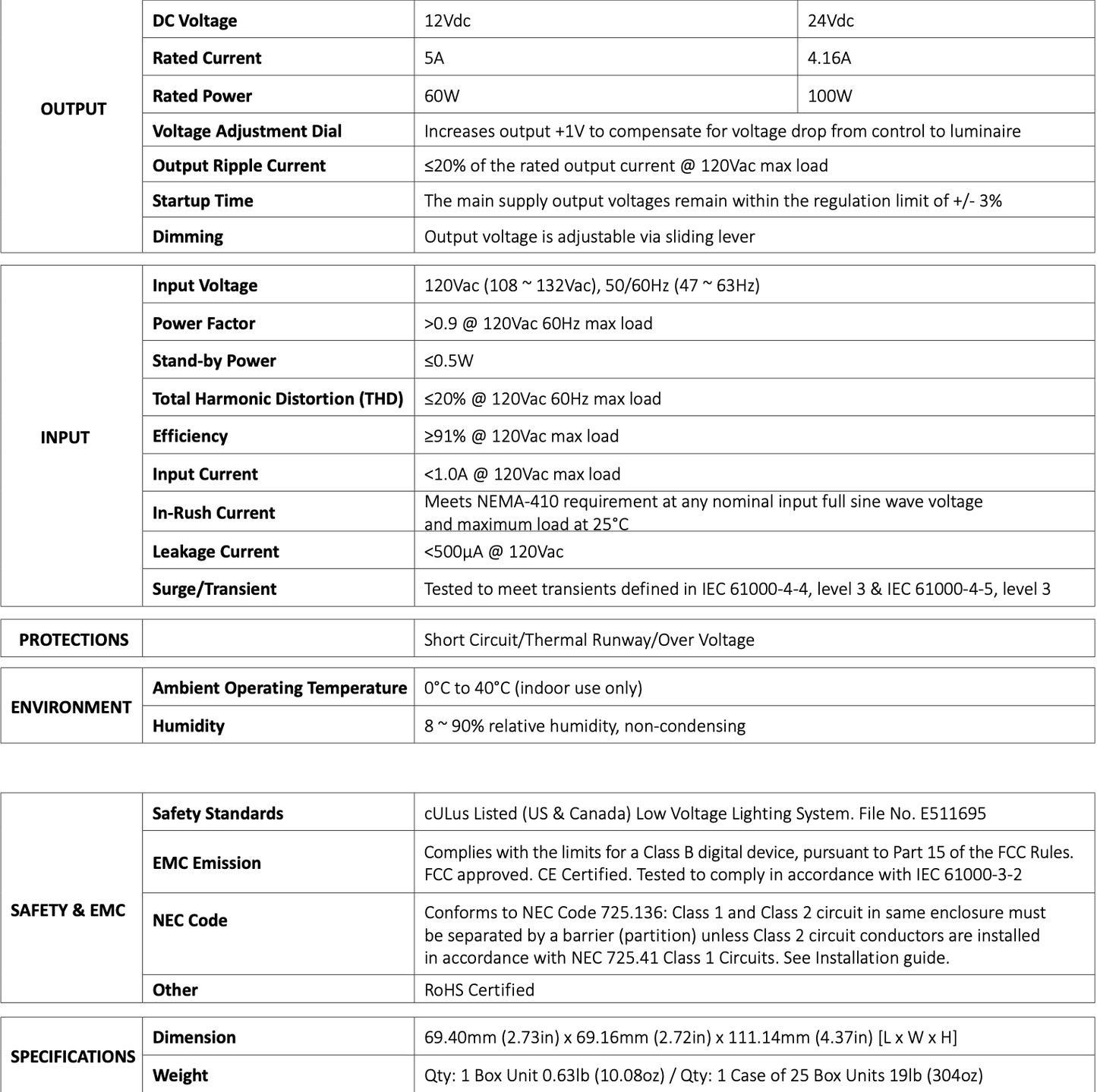

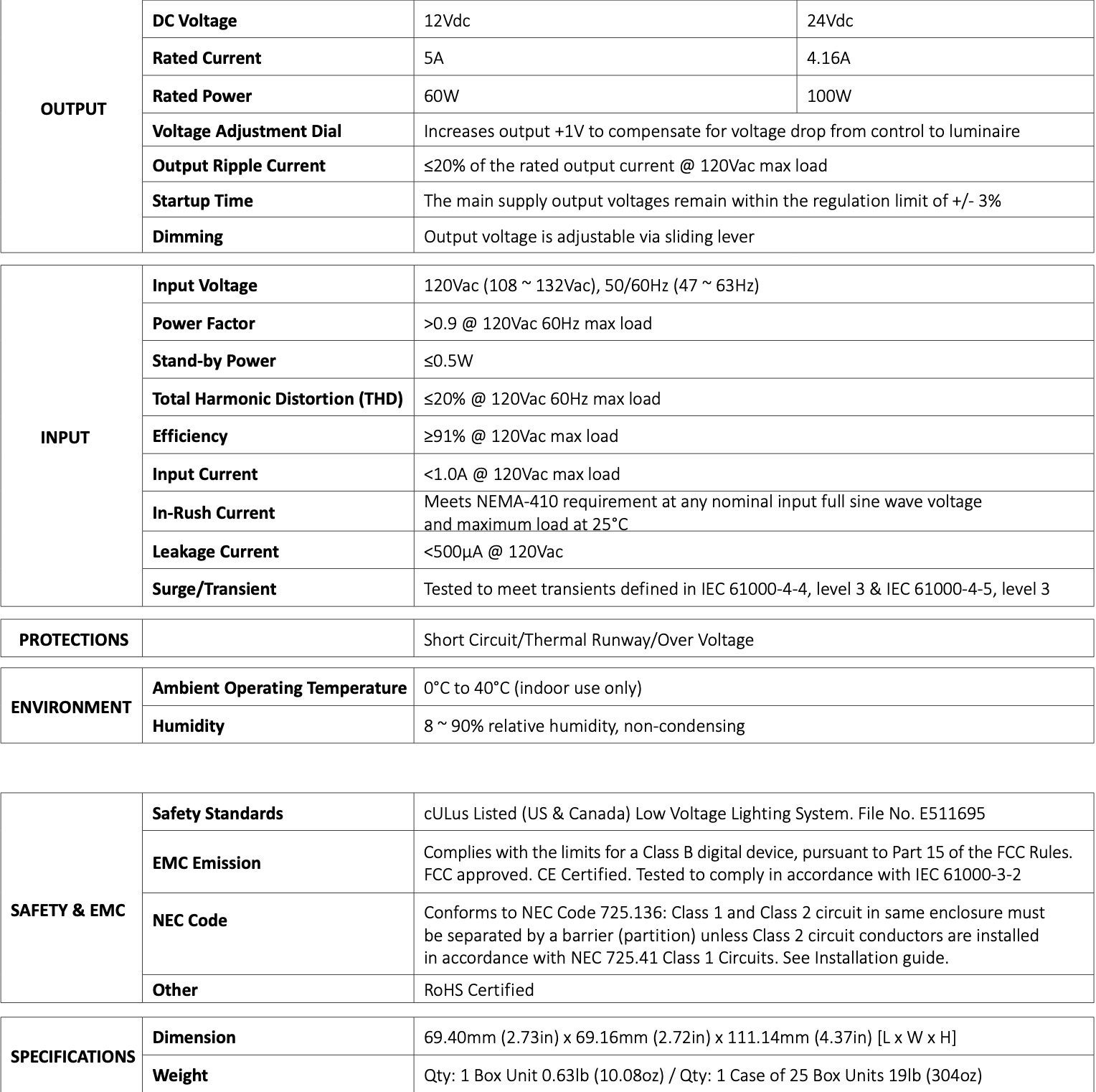

INSWITCH II™ – Features & Benefits

• All-in-One Design – Converts 120 VAC to 24 VDC and dims from 100 % to 1 %.
• Two Output Models – Choose 60 W (2.5 A) for most standard runs or 96 W (4 A) for extended runs (30 ft+) and steam room installs.
• UL Listed & JA8 Compliant – Approved for U.S./Canada and Title 24 Part 6 high-efficacy installations.
• Single-Pole or 3-Way Ready – Wire in parallel with a standard mechanical switch for remote on/off control.
• Auto-Trim Load Sensing – Patented circuitry self-calibrates for flicker-free, low-load dimming.
• Quick-Mount Kit – Ships pre-assembled with white Decora-style faceplate and barrier partition.
• Faceplate Options – Gloss white standard; glossy dark brown or light almond available as add-ons.
• Steam Room Ready (96 W Model) – Robust enough for high-humidity, high-temperature environments.
• 5-Year Warranty – Backed by Illuminiche for long-term reliability.
