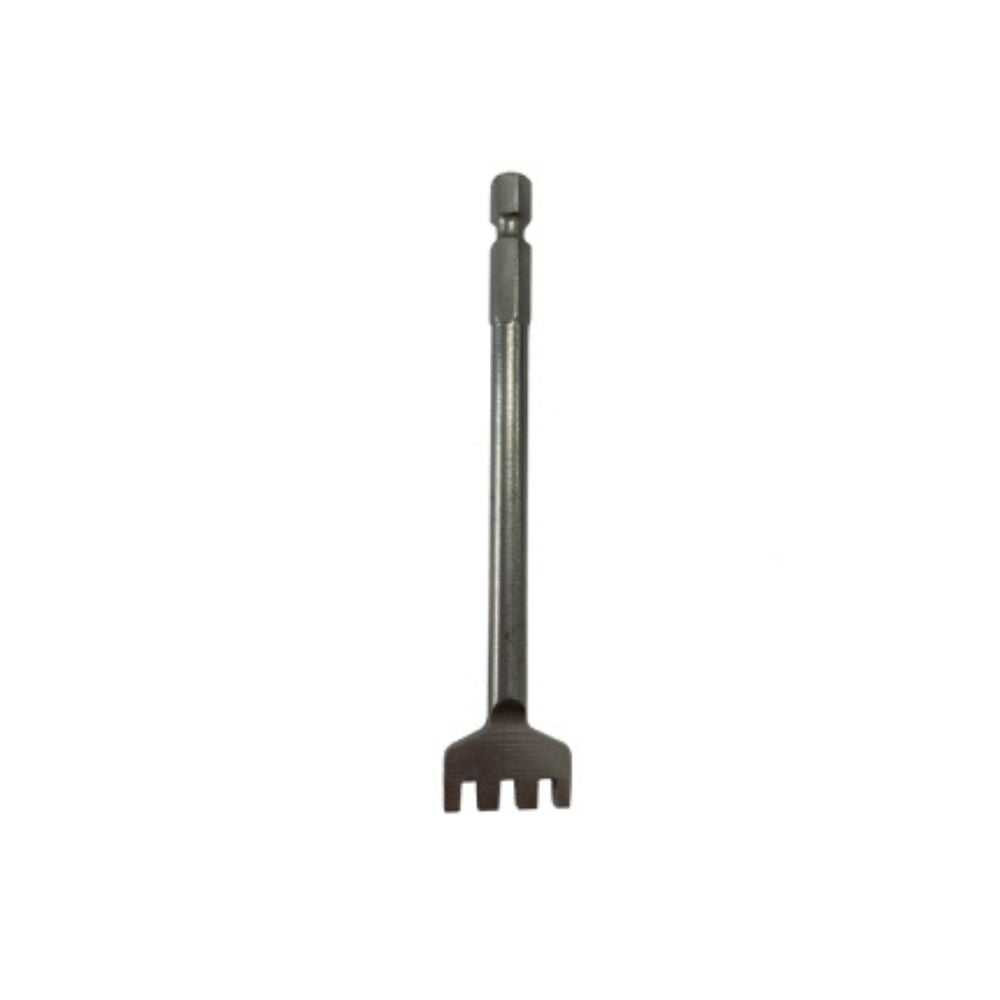

LATICRETE NXT Pedestal High Speed Chuck

Fast-installation tool for quick pedestal height adjustment

The LATICRETE NXT Pedestal High Speed Chuck is designed to streamline pedestal installations by securely gripping and rotating pedestal components for quick, consistent height adjustments. It is compatible with the entire NXT Pedestal system and is intended to improve installation speed on larger projects.

Features & Benefits

• Faster pedestal adjustment: Helps speed up height changes during installation and leveling.
• Secure grip: Designed to engage pedestal components for controlled rotation.
• Improved efficiency: Reduces labor time on large-format pedestal installations.
• Consistent results: Supports accurate, repeatable pedestal height adjustments.
• System-wide compatibility: Compatible with the entire LATICRETE NXT Pedestal system.
• Fine-tuning capable: Can also be fitted to the NXT Pedestal Maintenance Key handle for more precise adjustment.

Applications

• Raised paver installations
• Porcelain and stone pedestal systems
• Decking pedestal installations
• Leveling and fine-tuning NXT pedestal heights during setup
• Maintenance adjustments after pedestal installation

Compatibility

• Compatible with the LATICRETE NXT Pedestal System
• Designed for use with NXT pedestal components
• Can be used with the NXT Pedestal Maintenance Key for fine adjustment

Technical Details

• Product name: LATICRETE NXT Pedestal High Speed Chuck
• Packaging: 1 piece
• Use method: Insert into the center of the pedestal head until it seats into the key locator

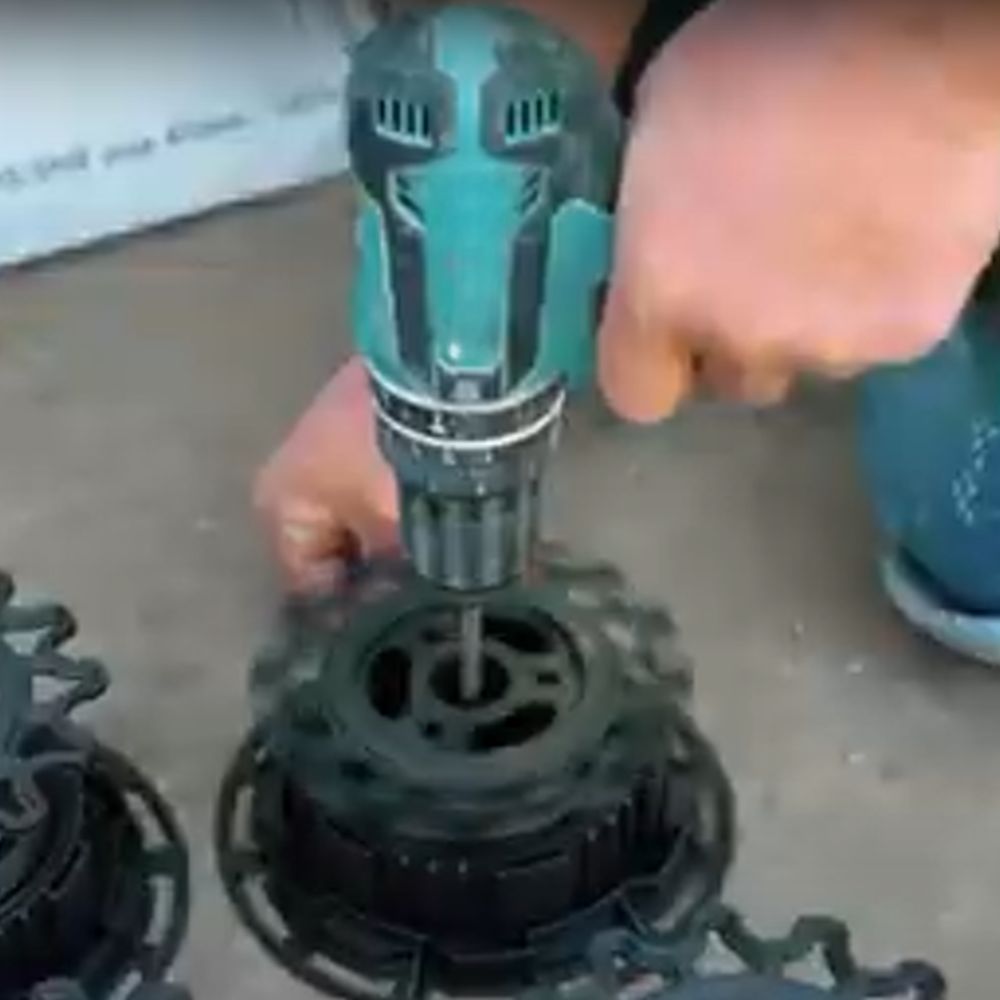

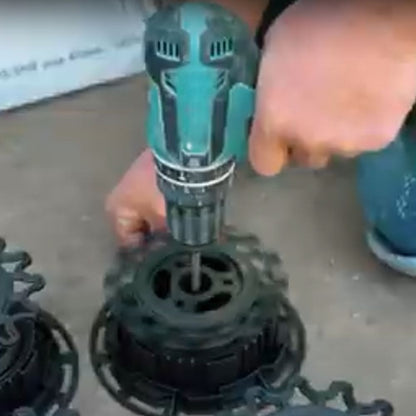

• Tool requirement: Use with an electric drill or screwdriver on low clutch setting only
• Warranty reference: 5 Year Pedestals Product Warranty

Use Notes

• Use with an electric drill or screwdriver on LOW clutch setting only.
• Do not use an impact driver.

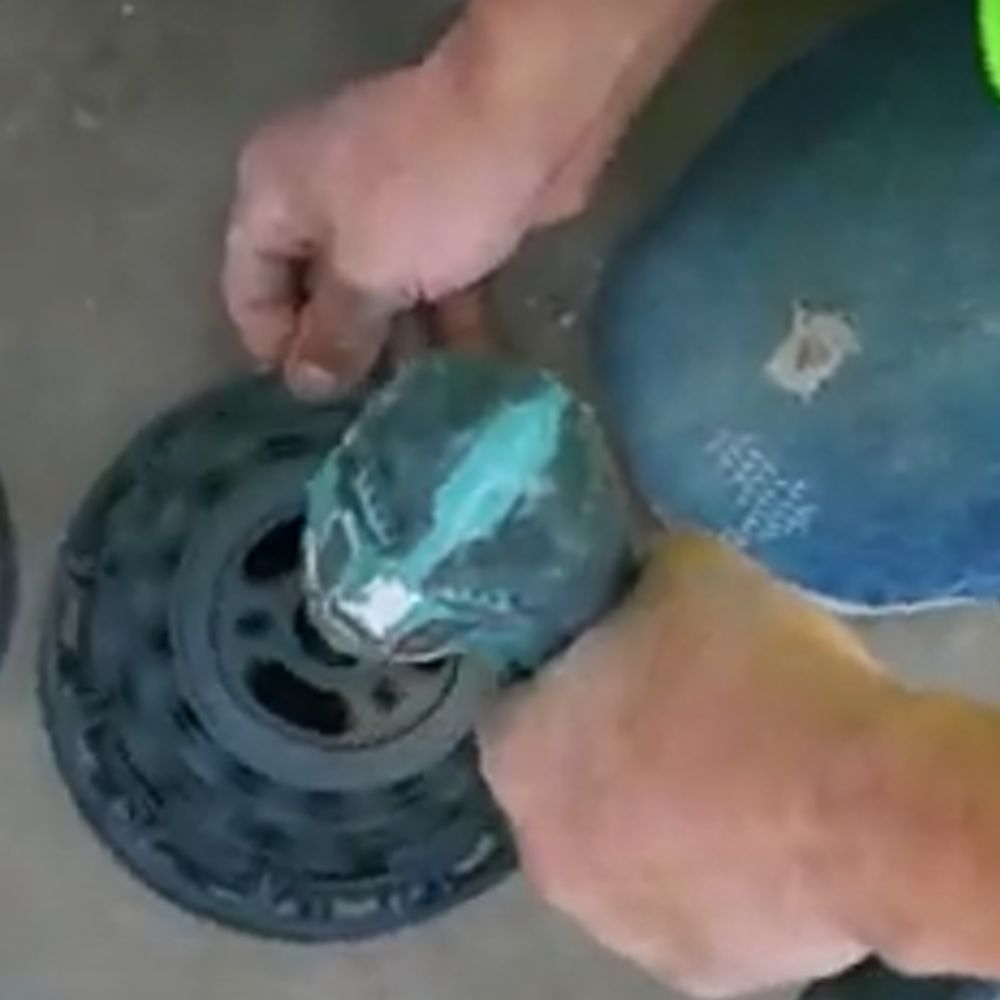

• Insert into the center of the pedestal head and turn until it seats into the key locator.
• For pedestal adjustment, reverse increases height and forward decreases height.
• Do not stand on the paver being adjusted.
