LATICRETE NXT Pedestal Max

Adjustable pedestal for raised paver, tile, and decking systems

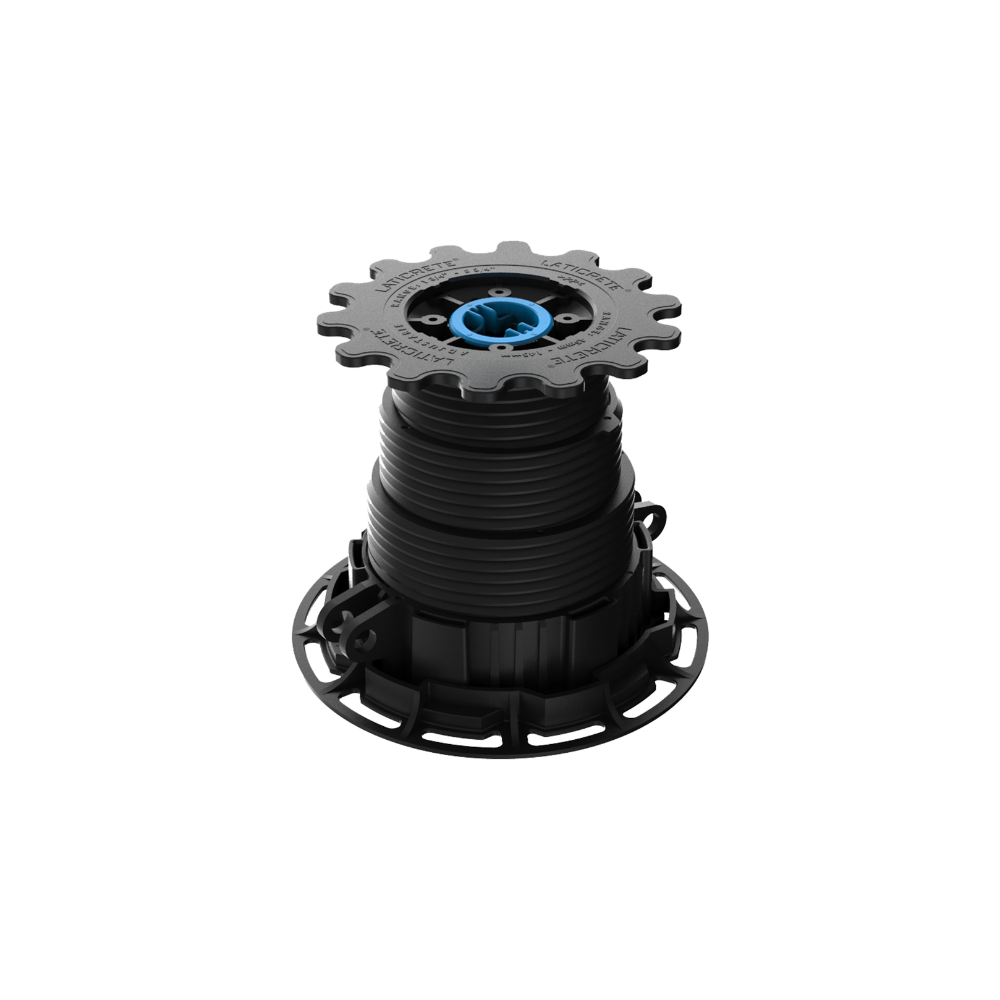

LATICRETE NXT Pedestal Max is the primary adjustable pedestal in the NXT pedestal system for elevated exterior assemblies. Designed for standard height requirements, it provides an adjustable range of 1-3/4" to 5-3/4" (45 mm to 145 mm) and integrates with NXT Extenders when additional elevation is required.

Features & Benefits

• Primary adjustable pedestal: Designed for raised exterior assemblies including pavers, tile, stone, and decking.
• Adjustable height range: 1-3/4" to 5-3/4" (45 mm to 145 mm) for common rooftop, terrace, and plaza applications.

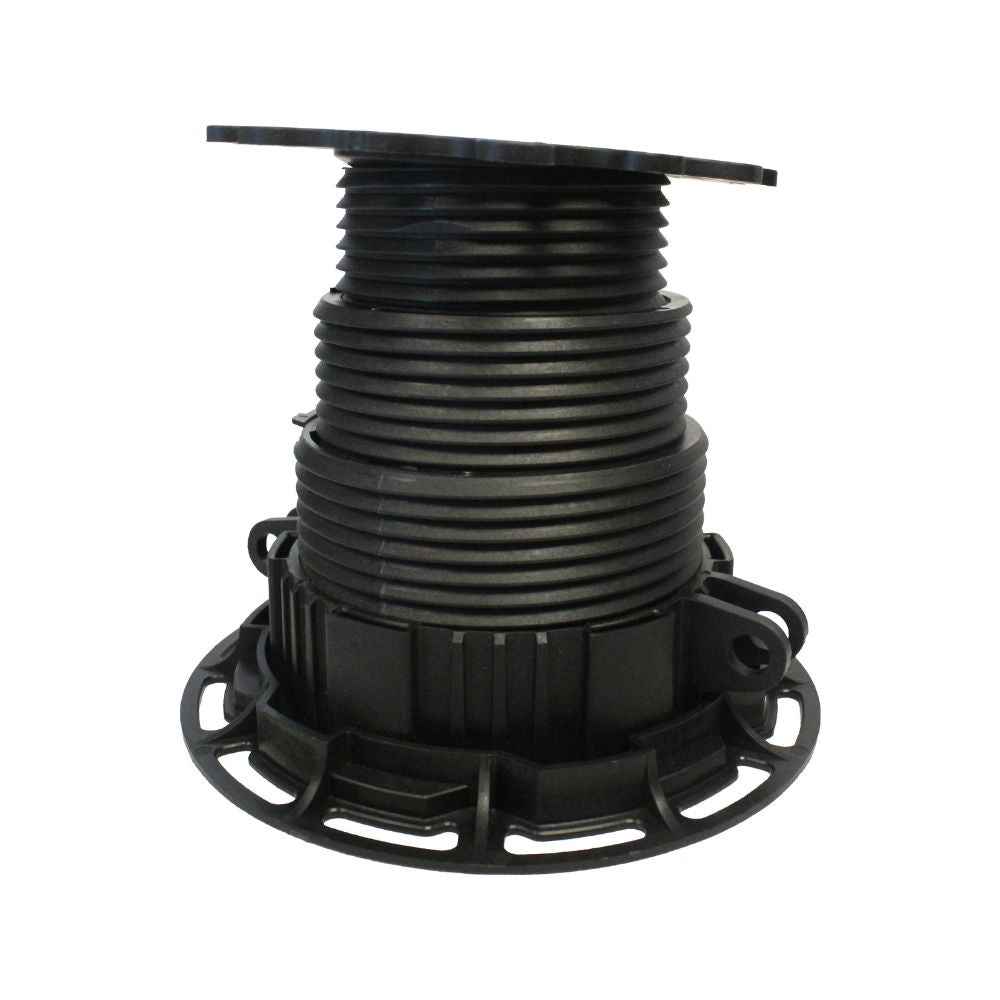

• Tilting head: Accommodates slopes up to 5 degrees.
• Triple screw adjustment: Supports precise field leveling and fine-tuning.
• Spacer tab included: 5/32" spacer tab included with pedestal.
• Sound dampening head pad: Built in for improved system performance.

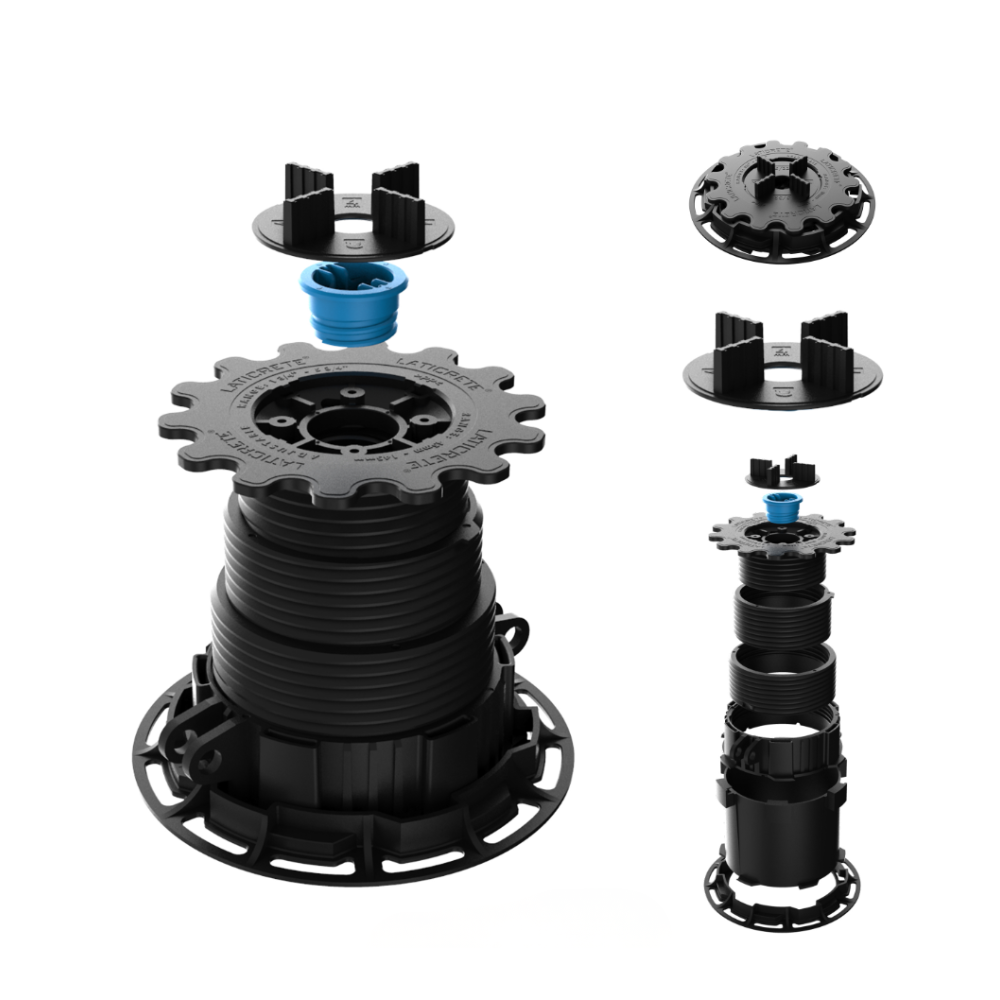

• Extender compatible: Click-and-connect design works with NXT Extenders for added height.
• High load capacity: Load rated up to 2,200 psi.
• Exterior system performance: Supports drainage, thermal insulation, and expansion absorption.
• Accessory compatible: Works with NXT Rubber Shims, Slope Correctors, Timber Joist Brackets, Wind Uplift Anchors, and Base Protection Pads.
• Serviceable after installation: Compatible with the NXT Maintenance Key and High Speed Chuck for adjustment and maintenance.

Applications

• Rooftop decking
• Terraces and patios
• Green roof systems
• Plazas and public spaces
• Pool decking
• Balconies and walkways
• Temporary or modular flooring

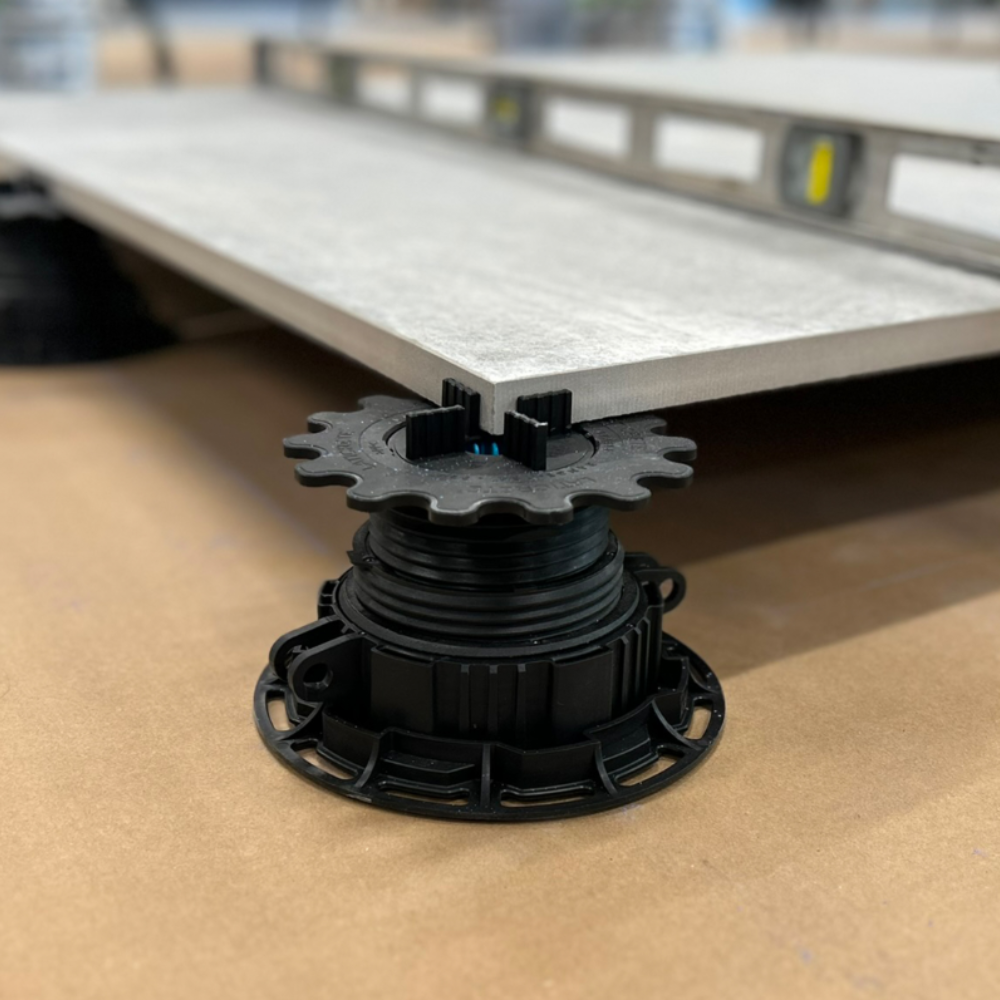

• Raised paver, tile, stone, and timber decking assemblies

Compatibility

• Compatible with NXT Extender
• Compatible with NXT Rubber Shims
• Compatible with NXT Slope Correctors
• Compatible with Timber Joist Brackets
• Compatible with Wind Uplift Anchors
• Compatible with Base Protection Pads
• Suitable for installation over structurally sound concrete, masonry, waterproofed exterior glue plywood decks, and metal/steel substrates

Technical Details

• Product name: NXT Pedestal Max
• Brand: LATICRETE
• Adjustable range: 1-3/4" to 5-3/4" (45 mm to 145 mm)
• Item number: PD1-0002-01
• Carton quantity: 36 pieces
• Packaging weight: 32 lbs / 14.5 kg
• Packaging dimensions: 20.5" L x 13.4" W x 11.8" H (52 cm x 34 cm x 30 cm)
• Color: Black
• Warranty: 5-year product limited warranty

Use Notes

• Install only over clean, smooth, rigid, structurally sound surfaces.
• Not suitable for soft surfaces such as grass, loose gravel, or crushed rock.
• If installing over a membraned substrate, use the NXT Pedestal Base Pad.
• Do not install pedestals upside down.
• Do not cut the pedestal.
• Do not use 4" extenders without a pedestal body and base.
• The NXT pedestal system uses 5/32" spacer joints.

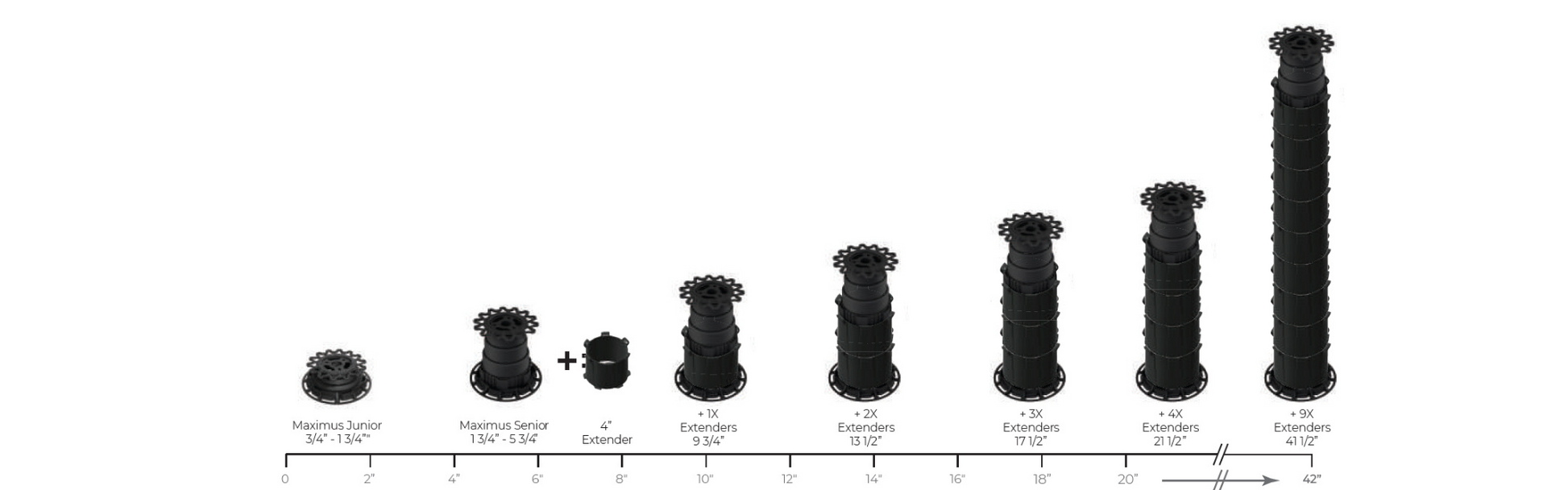

• NXT Extenders are compatible with NXT Pedestal Max only and add 4" (100 mm) each.
