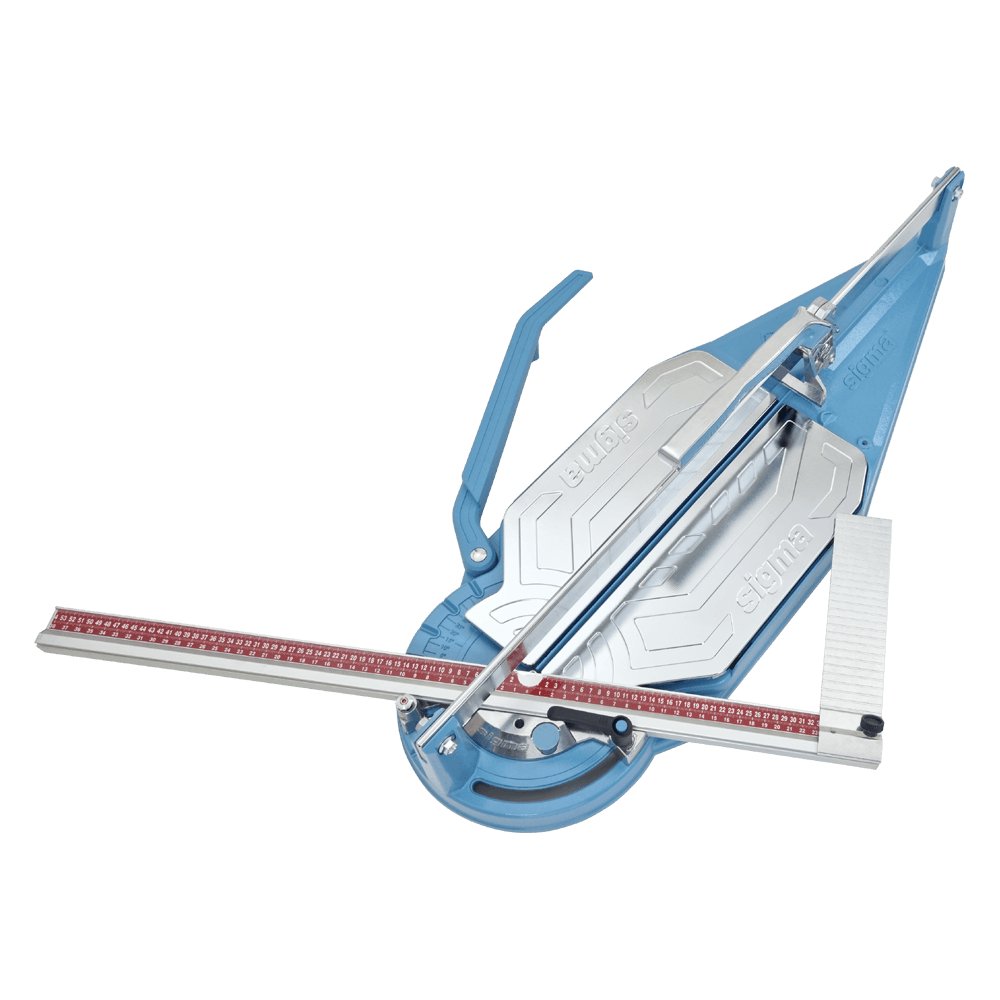

Sigma Series 4 "UP" Pulling Incision Tile Cutter
Sigma Series 4 "UP" Pulling Incision Tile Cutter
Couldn't load pickup availability
UP Tile Cutter – Pull-Style
“UP” HANDLE
Ergonomic handle , specifically designed for traction engraving.
The 12 mm diameter engraving wheel is always visible on the operator side.
CNC-milled wheel holder recess and anti-friction metal shell to eliminate friction and lateral wear of the engraving wheel.
Wheels also available in the TIN coated version .
The sliding carriage is wear-free , thanks to 3 double-row ball bearings which guarantee precision over time , without the need for maintenance.
Automatic steel compensator for adjusting the sliding preload of the carriage on the guide.
There is an automatic system that keeps the handle raised to facilitate insertion of the tile.
Split foot width 100 mm.
The interchangeable anti-mark guard protects the column from impact during engraving.
The handle is mounted to the sliding carriage with two ball thrust bearings , for maximum precision.
| Item # | Description | Case Qty |
|---|---|---|

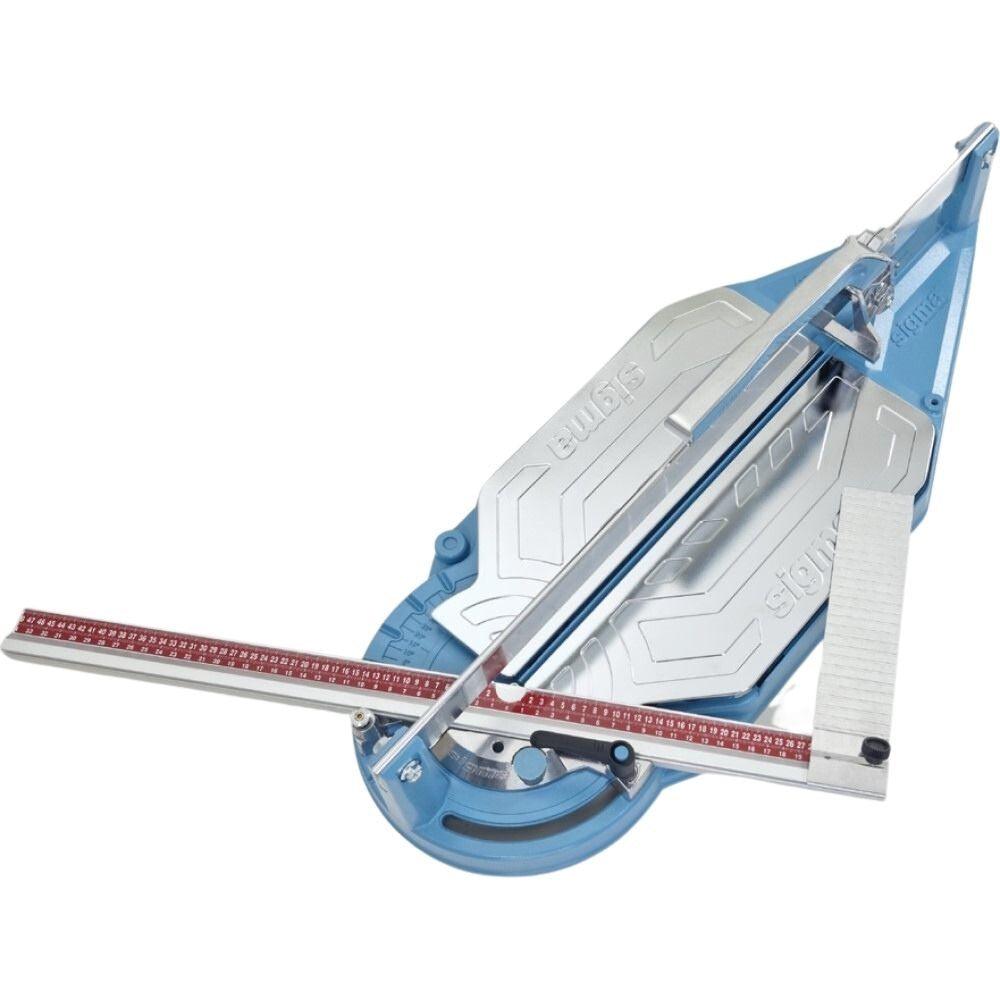

| Sigma 4BU | Length of Cut 27.5 in Diagonally Cuts 19.5 in Weight 23 lbs. | 1 |
| Sigma 4CU | Length of Cut 33 in Diagonally Cuts 23.4 in Weight 27 lbs. | 1 |

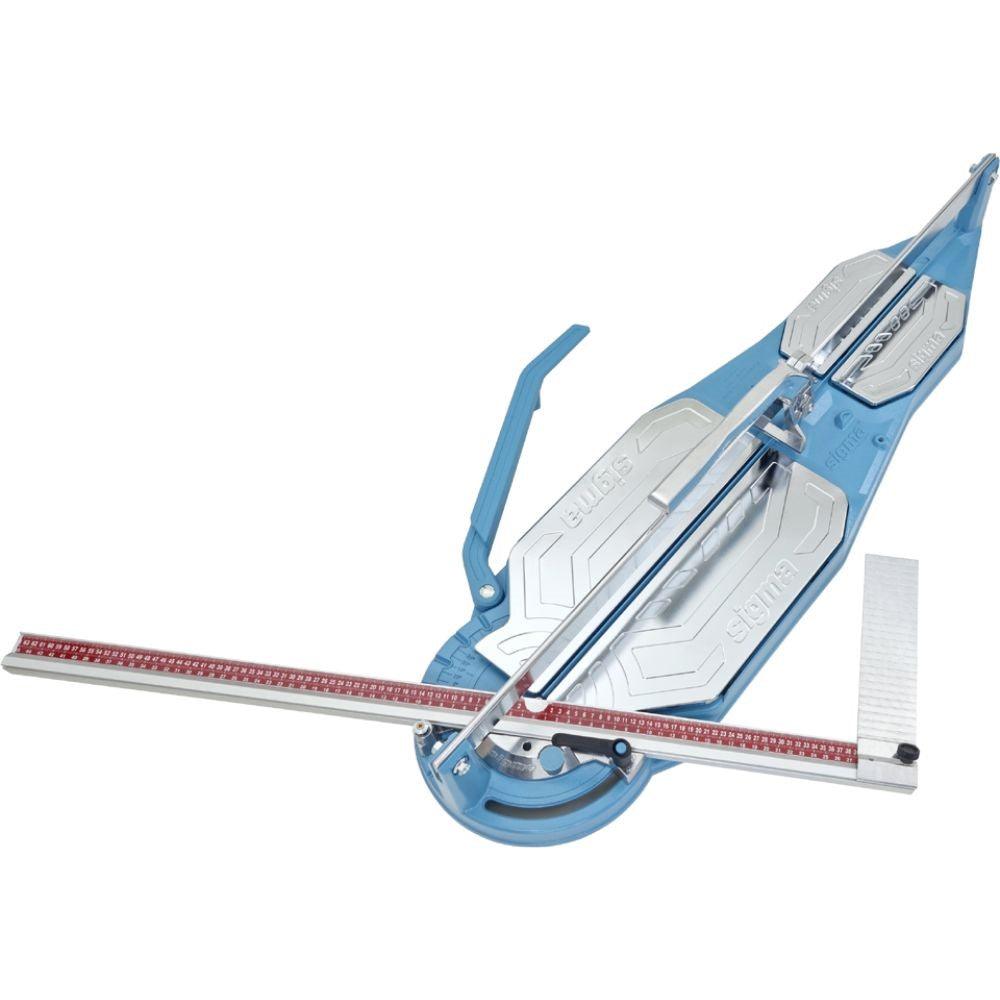

| Sigma 4DU | Length of Cut 40.5 in Diagonally Cuts 28.6 in Weight 32 lbs. | 1 |
| 14U | Sigma 14U Scoring Wheel | 10 |

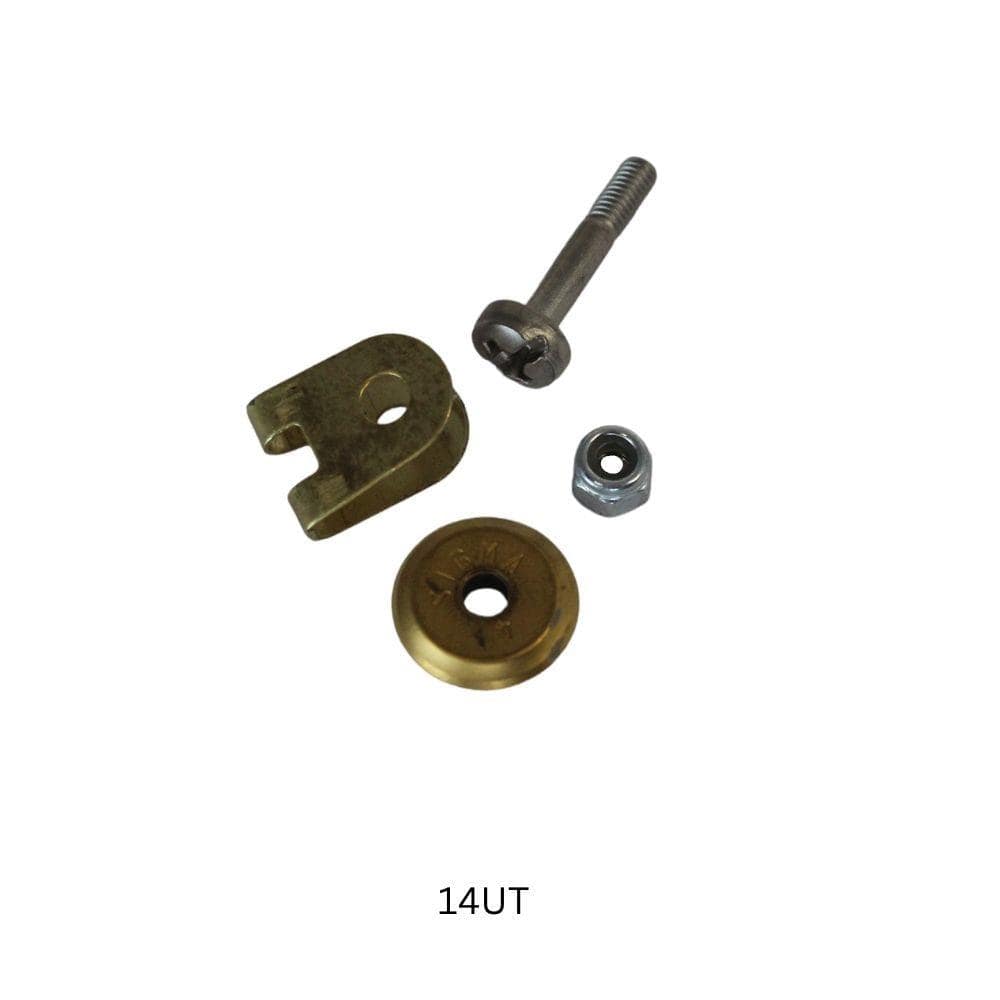

| 14UT | Titanium Scoring Wheel | 10 |
