WIDE SLIDING SUPPORT
Wide table top ensures perfect stability when working. The specific material of the table top allows easy sliding without scratching the tile.
Sigma
Sigma Simple Bevel Mounting Kit 36C4
Sigma Simple Bevel Mounting Kit 36C4
Regular price
$125.00USD
Regular price
Sale price
$125.00USD
Unit price
per
Couldn't load pickup availability
SIMPLE BEVEL
Equipment for precision bevels, with variable angle and depth through the use of special grinding wheels. INSTRUCTION MANUAL
TECHNICAL FEATURES
- SIMPLE-BEVEL sliding along the edge of the tile/slab (stoneware, marble, granite, etc.) guarantees uniformity of the chamfer over the entire length of the machined edge, exactly copying the natural curves of the slab.
- Beveling from 0–12 mm (0–6 mm on porcelain gres) and size from 30 cm to infinity.
- Adjustable to any angle between 22° and 90°.
- Allows side edge finishing of the tile (max. 30 mm).
- Prepared for dust extraction for dry cutting without releasing dust into the air.
- Universal attachment M14 for 700–1400 W angle grinders.
- Supplied complete with 100 mm pad holder and 50-grit diamond wheel.
SIDE HANDLES
When working on top of the tile, the side handles provide excellent grip without losing stability.
UNIVERSAL ATTACHMENT FOR GRINDERS
It is possible to mount any angle grinder from 700 to 1400 W thanks to its universal M14 connection.
DUST EXTRACTION
Dust-free working thanks to the universal vacuum connection.
WITH OR WITHOUT WATER?
Specially designed to work in both ways.
Thanks to the WATERKIT it is possible to work with an adjustable water jet for maximum finish and longer tool life.

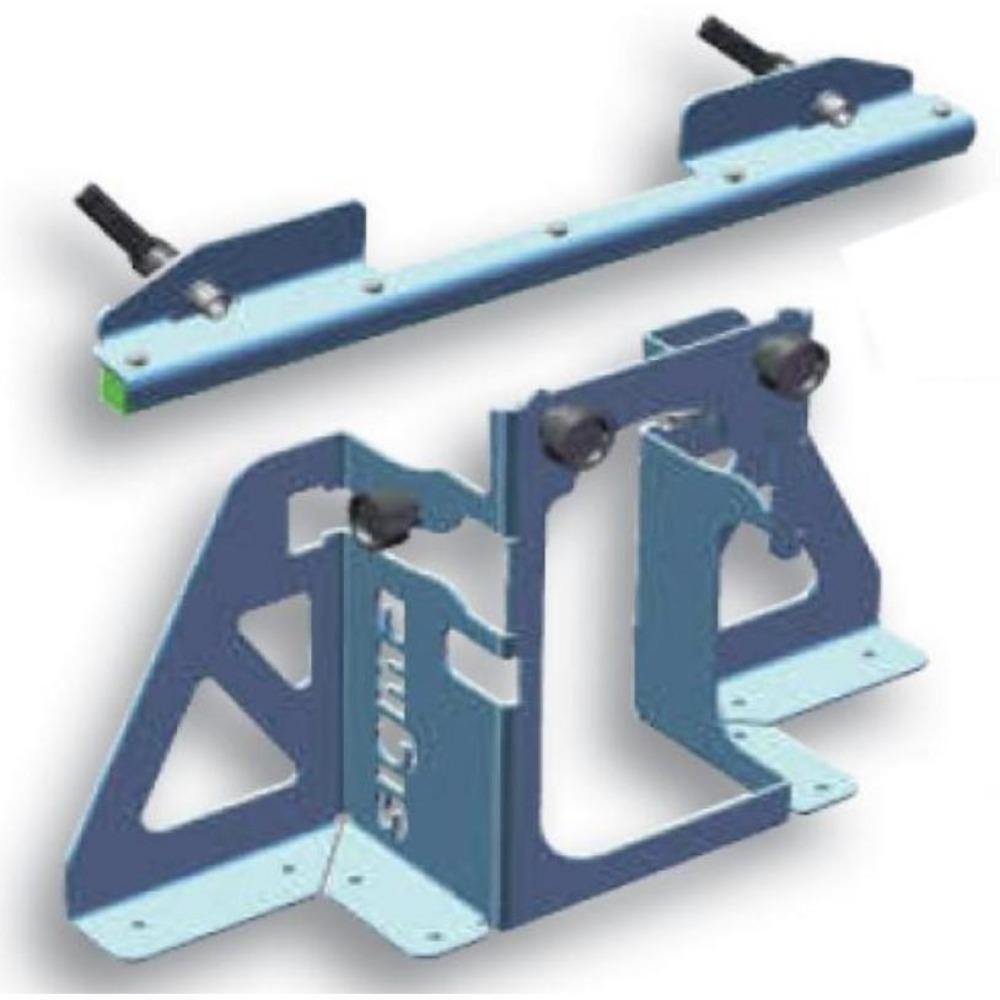

FIXING KIT Art. 36C4
Particularly convenient for series production of small parts such as skirting boards. The fixing kit allows the machine to be clamped on a flat surface while moving the tile on the machine.
It is possible to fix the stand on the Sigma “Workbench” without the use of tools.
